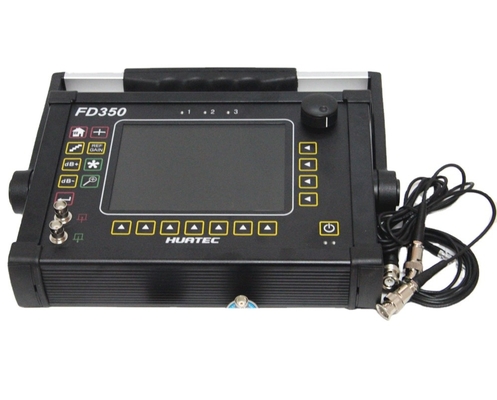

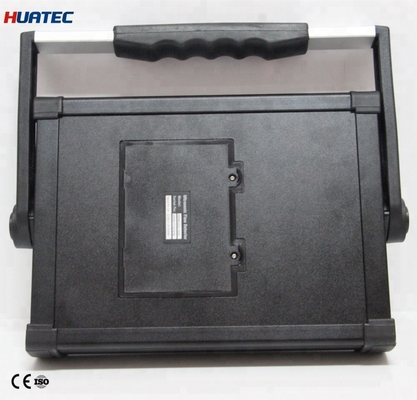

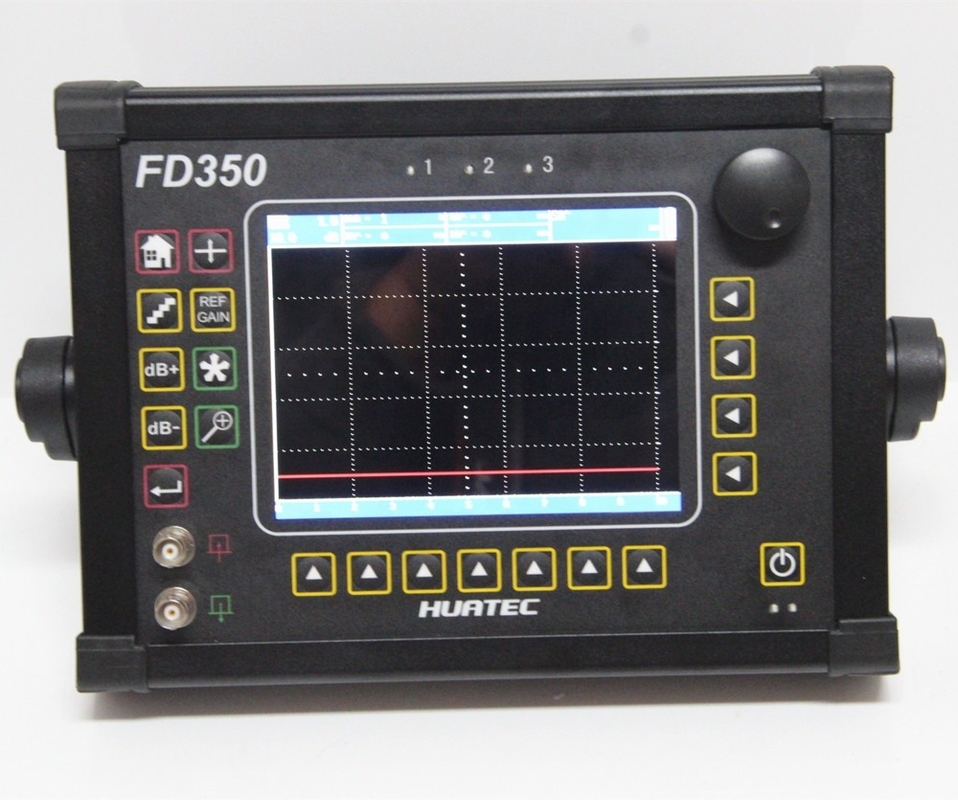

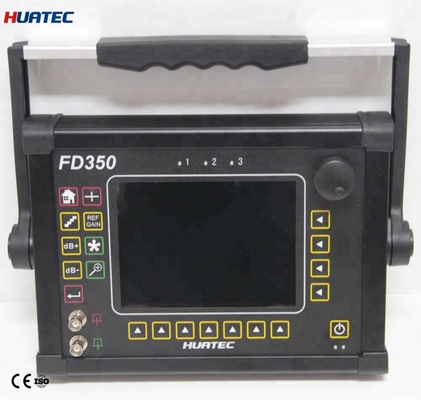

FD350 Digital Ultrasonic Flaw Detector Detection Range 0-10000mm
Product Info:
·Automated calibration Automated gain
·Automated make video of test process and play
·AWS D1.1,DAC/TCG, JIS DAC/TCG,AVG,DGS, A scan & B scan
·High-speed capture and very low noise
·Solid metal housing (IP65)
·High contrast viewing of the waveform from bright
·Powerful pc software and reports can be export to excel
·Small size, light weigh model
Main Technical Index:
| FUNCTIONS |
PARAMETERS |
| Frequency |
0.2 – 20 MHz |
| Detection range |
0 - 10000 mm |
| Sound velocity |
100 – 20000 m/s |
| Working methods |
Pulse echo, dual, and thru-transmission |
| Pulse Shift |
-5 to 3400 μs in steel (dependent on range) |
| Zero point of the probe |
0 – 100 μs |
| Gain adjustment |
(0-110) dB, Step:0.2, 0.5, 1.0, 2.0, 6.0, 12.0, user definable(0-24), and locked |
| Vertical linear error |
≤3% |
| Horizontal linear error |
≤0.1% |
| Dynamic range |
≥40dB |
| Sensitivity surplus |
≥60dB (200mm depth ,Ф2 flat- bottomed hole ) |
| Communications |
Connect with computer through RS232 or USB |
| The average electric yawp |
≤20% |
| Color TFT LCD |
5.25” x 3.875” (133 x 98 mm), 640 x 480 pixels VGA,color |
| Gate alarm |
Wave-entering gate / wave-losing gate sound alarm, width, height, location, continuous-tuning |
| Time of battery working |
7 hours |
| Temperature of working |
-10℃～60℃ |
| Power |
220VAC, 110VDC |
| Appearance size |
11.9” W x 9.9” H x 2” D (302 x 251 x 51 mm) |
| Net weight |
5.5 lbs. (2.5 kg) Li-Ion Battery; 4.8 lbs. (2.2 kg) without battery |
Standard Delivery:
Portable ultrasonic flaw detector main unit
Operating manual
Straight Beam probe
Angle-beam probe(60 degree)
Probe cable
PC software CD
Serial PC cable
AC adapter/charger
Carrying case
Additional Accessories:
Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe (Lemo 01-BNC)
Connection cable to probe (Lemo 01-Lemo 00)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
Leather case
Test block V1
Test block V2
Test blocks DAC, ASME etc.
