IIW TYPE 1 UT Calibration Block Carbon Steel

Large Image : IIW TYPE 1 UT Calibration Block Carbon Steel

Product Details:

Place of Origin:	China
Brand Name:	Huatec
Certification:	ISO,CE
Model Number:	IIW Type I

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	in high quality carton
Delivery Time:	5~8 days after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs per month

Contact Now

IIW TYPE 1 UT Calibration Block Carbon Steel

Description

Product Name:

Calibration Block

Type:

IIW Type I

Material:

Carbon Steel

Gross Weight:

8kgs

Highlight:

Carbon Steel UT Calibration Block

UT Calibration Block

IIW TYPE 1 UT Calibration Block

IIW TYPE 1 UT Calibration Block Carbon Steel

HUATEC provide different UT calibration blocks.

Straigh beam	Distance,amplitude,resolution,horizorital linearity
Angle beam	sweep length,index point,sound path in wedge,sound path angle 35°~80°
Standard Made To	AWS D1.1/D1.1M
Material Size	Steel 25x100x300mm

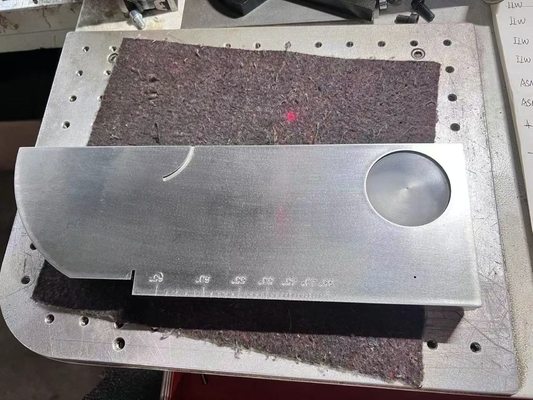

IIW TYPE 1 UT Calibration Block Carbon Steel 0

IIW TYPE 1 UT Calibration Block Carbon Steel 1
