AC and DC Magnetic Particle Yoke Flaw Detector of Magnetic Particle Testing HCDX-Y9

AC and DC Magnetic Particle Yoke Flaw Detector of Magnetic Particle Testing HCDX-Y9​

The HCDX-Y9 is an AC/DC electromagnetic yoke, ergonomically designed to improve productivity. The yoke generates a strong AC/DC magnetic field for the detection of surface indications during magnetic particle testing.

Lightweight with an ergonomic grip and trigger, the HCDX-Y9 is designed for the rugged demands of field inspection. Featuring replaceable spare parts body design, isolated trigger switch,power cord,mainboard,UV & white light lamp and legs all can be replaced by user, the HCDX-Y9 is easily serviceable not stop a job from getting done.

A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including Red and Gray magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.

Parameters index

Note: AC and DC Magnetic Particle Yoke Flaw Detector of Magnetic Particle Testing HCDX-Y9 can choose inbuilt led white light or inbuilt led UV light, and we also have ac yoke and other MT accessories, such as Gauss meter,UV lamp,test specimen, dead weight test block and so on.

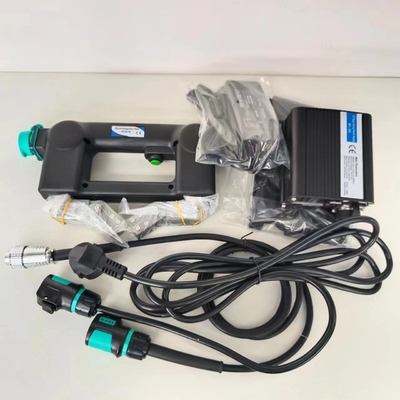

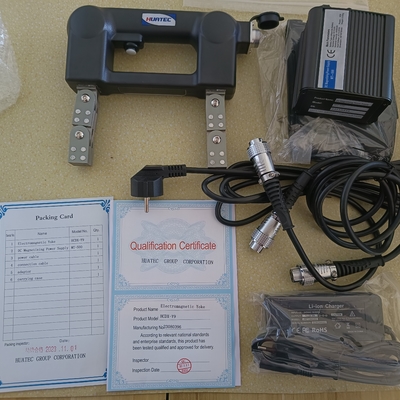

Standard delilvery

Yoke HCDX-Y9 1PC

Power cord 1PC

DC battery pack 1PC

DC battery charger 1PC

DC battery power cord 1PC

DC battery bag 1PC

Calibration certificate 1PC

Warranty card 1PC

Carrying case 1PC
Operation manual 1PC
