DG-4020 Handheld LED-UV Lamp Dual AC DC Operation

Large Image : DG-4020 Handheld LED-UV Lamp Dual AC DC Operation

Product Details:

Place of Origin:	China
Brand Name:	Huatec
Certification:	ISO,CE
Model Number:	DG4020

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in high quality carton
Delivery Time:	5~10 days after payment
Payment Terms:	L/C, Western Union, T/T
Supply Ability:	1000sets per month

Contact Now

DG-4020 Handheld LED-UV Lamp Dual AC DC Operation

Description

Product Name:	Handheld LED-UV Lamp	UV(Light)-FLUX:	6000uW/cm2
Irradiation Area At Depth Of 380mm:	Φ300mm	Power Supply:	AC100- 240V，50/60Hz
Overall Dimension:	157. 5mm (W) 76mm (D) 177mm (H)	Battery Capacity:	2200mA/H 12.6V
Highlight:	LED-UV Lamp , Dual AC DC LED-UV Lamp , Handheld LED-UV Lamp

DG-4020 Handheld LED-UV Lamp Dual AC&DC Operation

Feature:

● Strictly comply with ASTM E3022

● UV-B content is 0

● Battery life of 2-3 hours

● Quick Battery Replacement

● Only 560g of battery is included

● Temperature rise of external surface under continuous operation < 8K (8℃)

● It has colour filter glass, and the white light content is less than 20LUX

● Can work with AC directly and also with DC battery

Parameters:

Project	Parameter / mode
Style	Handheld
UV(Light)-FLUX Indoor temperature 25℃	6000uW/cm²
White light content	≤3LUX
Irradiation area at depth of 380mm: (≥1000uw/cm²)	Φ300mm
Flux error	0-40℃ ±10%
Light distribution characteristics	Central light distribution
Power Supply	AC100- 240V,50/60Hz
Power	UV LED-12VA
Wavelength	Room temperature 25℃, 365nm±3nm (UVA)
Overall dimension	157. 5mm (W) 76mm (D) 177mm (H)
Weight	560g including battery

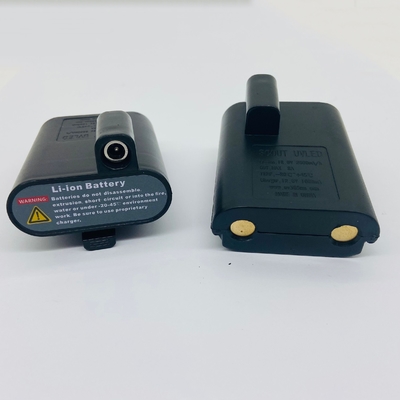

Battery capacity	2200mA/H 12.6V
Charging time	2-3H
Battery life (cumulative time)	UV LED 2-3H
