SE 1025 Plate Penetrameters Achieving Optimal NDT Results With Precision

Large Image : SE 1025 Plate Penetrameters Achieving Optimal NDT Results With Precision

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	Hole type IQI

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

SE 1025 Plate Penetrameters Achieving Optimal NDT Results With Precision

Description

20:	0.476-0.540	25:	0.571-0.699
30:	0.698-0.826	35:	0.825-0.953
40:	0.952-1.080	45:	1.079-1.207
Highlight:	NDT Plate Penetrameters , Precision Plate Penetrameters , SE 1025 Plate Penetrameters

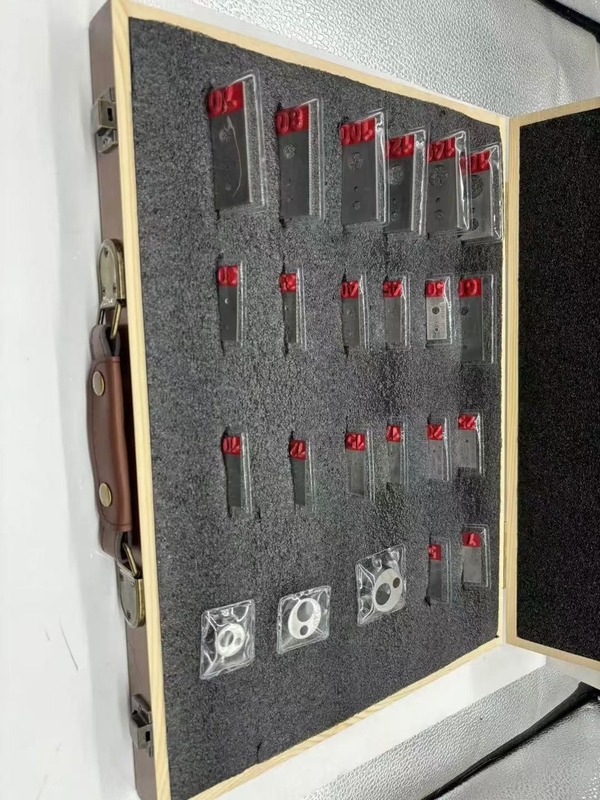

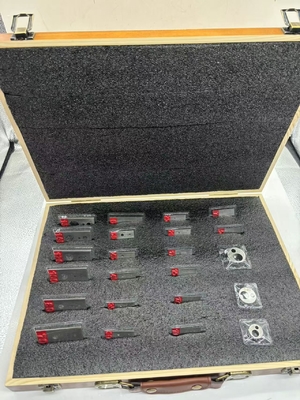

ASTM SE 1025 plate penetrameters

ASTM SE 1025 Plate Penetrameters are normally used to conform with the AmericanInspection Standards.

They are rectanqular plates, 2% in thickness of the specimenand of material radiographically similar to the specimen.

Each plate has three holesdrilled equal in diameter to 1X, 2X, and 4X the plate penetrameter thickness.

Theminimum thickness of Plate type penetrameter is 0.010". For Penetrameters greaterthan 0.180",

these are supplied in disc form, the outside diameter is 4X, with 2 holes1X & 2X the thickness ofthe Penetrameter.

The chart below gives Plate PenetrameterIdentification and thickness and a guide as to which penetrameter to use for eachmaterial thickness.

:mm
No.	Thickness		Aperture T		Aperture 2T		Aperture 4T
No.	Range	Measured	Range	Measured	Range	Measured	Range	Measured
5	0.1143-0.1397	0.1395	0.241-0.267	0.261	0.495-0.521	0.519	1.003-1.029	1.023
7	0.165-0.191	0.189	0.241-0.267	0.263	0.495-0.521	0.519	1.003-1.029	1.025
10	0.241-0.267	0.247	0.241-0.267	0.264	0.495-0.521	0.519	1.003-1.029	1.017
12	0.275-0.335	0.311	0.275-0.335	0.329	0.608-0.667	0.654	1.238-1.302	1.298
15	0.349-0.413	0.392	0.349-0.413	0.368	0.730-0.794	0.762	1.492-1.556	1.522
17	0.400-0.464	0.406	0.400-0.464	0.411	0.857-0.921	0.911	1.746-1.810	1.795
20	0.476-0.540	0.484	0.476-0.540	0.505	0.984-1.048	1.019	2.000-2.064	2.018
25	0.571-0.699	0.653	0.571-0.699	0.646	1.206-1.334	1.288	2.476-2.604	2.498
30	0.698-0.826	0.769	0.698-0.826	0.721	1.460-1.558	1.514	2.984-3.112	3.039
35	0.825-0.953	0.887	0.825-0.953	0.907	1.714-1.842	1.766	3.492-3.620	3.577
40	0.952-1.080	0.972	0.952-1.080	1.019	1.968-2.096	1.987	4.000-4.128	4.118
45	1.079-1.207	1.201	1.079-1.207	1.201	2.222-2.350	2.31	4.508-4.626	4.619
50	1.206-1.334	1.311	1.206-1.334	1.314	2.476-2.604	2.535	5.016-5.144	5.106
60	1.397-1.651	1.527	1.397-1.651	1.535	2.921-3.175	3.014	5.969-6.223	6.055
70	1.714-1.842	1.832	1.714-1.842	1.832	3.492-3.620	3.595	7.048-7.176	7.110
80	1.905-2.159	2.002	1.905-2.159	1.952	3.937-4.191	4.061	8.001-8.255	8.028
100	2.413-2.667	2.653	2.413-2.667	2.637	4.953-5.207	5.197	10.033-10.287	10.265
120	2.921-3.175	3.011	2.921-3.175	3.012	5.969-6.223	6.123	12.065-12.319	12.301
140	3.429-3.683	3.523	3.429-3.683	3.612	6.985-7.239	7.156	14.097-14.351	14.251
160	3.937-4.191	4.015	3.937-4.191	4.101	8.001-8.255	8.155	16.129-16.383	16.295
200	4.826-5.334	5.135	4.826-5.334	5.012	9.906-10.414	10.125
	The test results meet the requirements of ASTM E1025
