Highly Accurate Magnetic Rope Abrasion Corrosion Distortion Detector HRD-100 For Relative Humidity ≤90％RH

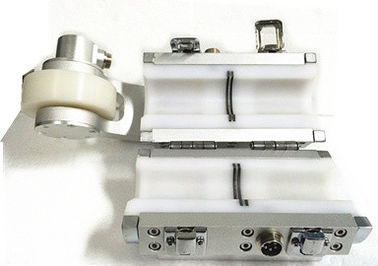

Magnetic rope detector HRD-100

Specification

 For inspection of ropes with diameter from 1 to 300 mm (0.04" to 11.8") standard size is 10-30mm, other different sensor could be customized.

 Speed along the rope during inspection - from 0 to 6 m/s (0 to 6,54 yards/s)

 Onling detect rope’s flaw like booken,abrasion,corrosion,distortion,skip steel wire etc.

 The test value could display broken quantity and broken area

 USB interface sampling and analysing, online sound alarm and display test value

 Sensor is circle shape, circumference encircle,axial magnetization, make the steel wire rope magnetize instant saturation.

 Sensor is metal shell,waterproof,dustproof, quakeproof, dampproof.

 High stability, reliable feature, high precision, anti-interference, data accuracy

 Software is apply to Windows98／2000／xp／Vista/windows7 many kinds of PC system

 Certificate standard is meet ASTM1571

 Widely use in Mine, sodo, hoisting equipment, elevator, port machinery, cable bridge etc.

 Size 330 x 235 x 190 mm (13" x 9,3" x 7,5 ")

 Weight 15 kg (33 lbs)

Features

 Test range(closed style sensor): Φ1.5—300 mm (standard size is 10-30mm, other different sensor could be customized)

 The relative speed of sensor and the wire rope is 0.0—6.0 m/s, optimal:0.3—1.5 m/s

 The best space of sensor’s guide bushing and wire rope is 2—6 mm, allowable space:0—15mm

 Dual-function: LMA and LF capability

 Speed does not affect readings

 Accurate distance wheel assembly

 Easy to install and re-install

 Easy to handle and fix on the rope

 3 changeable hall sensor units

 Temperature range -10 +50°C

 PC software control directly, continuously testing rope length more than 10000m

 Power: AC 220V±10％

 Working temperature: -20℃～40℃

 Storage temperature: -40℃～60℃

 Relative humidity: ≤90％R

Typical applications but not limited with:

Inspection of mining ropes, aerial ropeways (mostly ropes of chairlifts and gondola lifts), guy (suspension) ropes of bridge

Standard accessories

Probe 1 set Real time alarm 1pc

Signal cable 1pc HRD PC analyse software 1set

laptop(optional) 1pc Communication cable 1pc

Charger 1pc Tool 1set Instruction manual 1set
