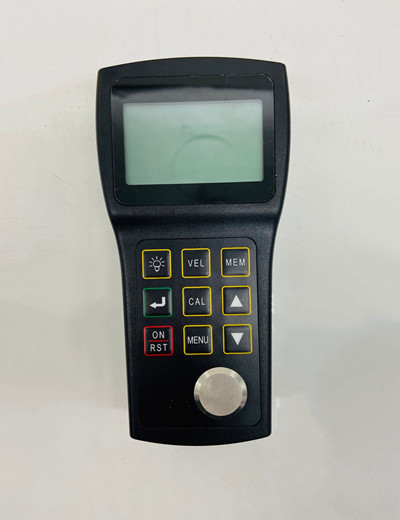

TG4100B High Precision Thin Piece Ultrasonic Thickness Gauge

TG4100B High Precision Thin piece Ultrasonic Thickness Gauge

Usage
Widely used to measure the thickness of metal materials. Especially display its advantage for measuring the thin piece and high precision measuring. What’s more, it can also through the thin coating layer and paint layer, and also be used to measure ultra thin wall with paint layer like fire extinguisher.

TECHNICAL DATA

FEATURES

Probe Zero Adjustment:

Selectable: 1-point calibration: normal measurement

2-point calibration: curve surface measurement or other special application with a high precision

V-Path Correction: Automatic

Automatic self-calibration

Couplant indicator

Automatic power off in 5 minutes and manual power off function

High-low limit alarm

LCD brightness adjustable

Measurement Update rate: 4 Hz

Minimum value scanning (MIN Capture mode): catch the minimum value during the measurement.

Can modify systematical errors by using the 4mm standard block on the instrument.

Low battery indicator

Metric/imperial optional

Dataview for PC communication

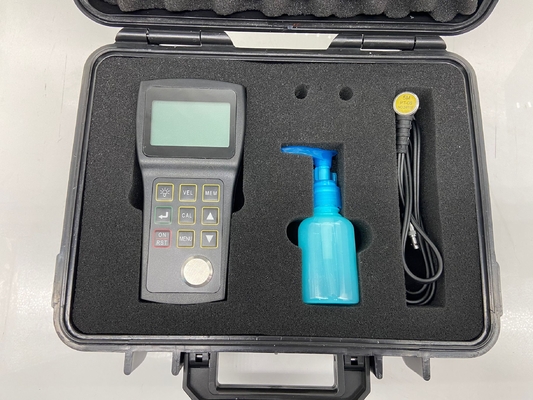

STANDARD DELIVERY

TG4100B main unit

Hard carrying case

Couplant bottle

Standard 8 mm, 5 MHz probe PT-08 with cable

OPTIONAL ACCESSORIES

4 steps steel test block

7 steps metrics steel test block

5 MHz, 4 mm contact probe

10 MHz, 4 mm, contact probe

5 MHz high temp. probe

Probe cables

Water proof housing

Dataview CD and communication cable optional
