Tungsten Duplex Wire Type Image Indicator IQI D13 Material 1D To 3D OEM Customized Support

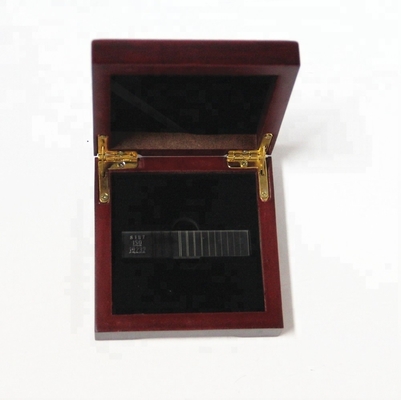

Large Image : Tungsten Duplex Wire Type Image Indicator IQI D13 Material 1D To 3D OEM Customized Support

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATEC
Certification:	ISO
Model Number:	D13

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD
Packaging Details:	Carton
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union
Supply Ability:	500PCS

Contact Now

Tungsten Duplex Wire Type Image Indicator IQI D13 Material 1D To 3D OEM Customized Support

Description

Model Number:

D13

Material 1D To 3D:

Tungsten

Purity 1D To 3D:

99.90%

Customized Support:

OEM

Highlight:

Tungsten Wire Type Image Indicator

Duplex Wire Type Image Indicator

OEM Wire Type Image Indicator

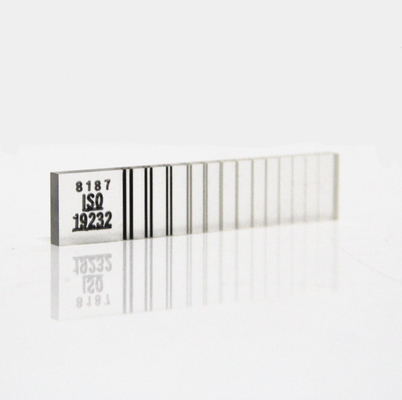

Duplex Wire Type Image Quality Indicator IQI D13

Standards: EN462-5 and ASTM E2002 optional

No.	d Nominal mm	d Wire (L)	d Distance	d Wire (R)
1D	0.800 ± 0.020	0.799	0.802	0.799
2D	0.630 ± 0.020	0.630	0.631	0.628
3D	0.500 ± 0.020	0.501	0.502	0.501
4D	0.400 ± 0.010	0.399	0.403	0.401
5D	0.320 ± 0.010	0.320	0.321	0.320
6D	0.250 ± 0.010	0.249	0.253	0.251
7D	0.200 ± 0.010	0.201	0.199	0.202
8D	0.160 ± 0.010	0.160	0.158	0.159
9D	0.130 ± 0.005	0.129	0.129	0.131
10D	0.100 ± 0.005	0.100	0.099	0.102
11D	0.080 ± 0.005	0.079	0.081	0.082
12D	0.063 ± 0.005	0.061	0.059	0.062
13D	0.050 ± 0.005	0.051	0.052	0.051
Wires 1D to 3D consist of Tungsten(W) - Purity min. 99.90%
Wires 4D to 13D consist of Platin(Pt) - Purity min. 99.95%

The Silk is tungsten for 1D to 3D, and the purity is 99.90%.

The silk is platinum for 4D to 13D, and the purity is greater than 99.95%.
