Fluorescent Magnetic particle inspection Inspection

Fluorescent Magnetic particle inspection Inspection
Fluorescent Magnetic particle inspection Inspection Fluorescent Magnetic particle inspection Inspection

Large Image :  Fluorescent Magnetic particle inspection Inspection

Product Details:
Place of Origin: CHINA
Brand Name: HUATEC
Certification: ISO
Model Number: HMP-6000
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Wooden
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union/Paypal
Supply Ability: 500PCS

Fluorescent Magnetic particle inspection Inspection

Description
Product Name: Magnetic Particle Inspection Warranty: 12 Months
Use: Suitable For Non-destructive Testing Of The Surface And Near Surface Of Parts Made Of Ferromagnetic Materials Operation Principle: Fluorescent Magnetic Particle Inspection Inspection
Highlight:

Ferromagnetic Materials Magnetic Particle Inspection

,

Fluorescent Magnetic Particle Inspection

,

Non Destructive Magnetic Particle Inspection

Fluorescent Magnetic particle inspection Inspection

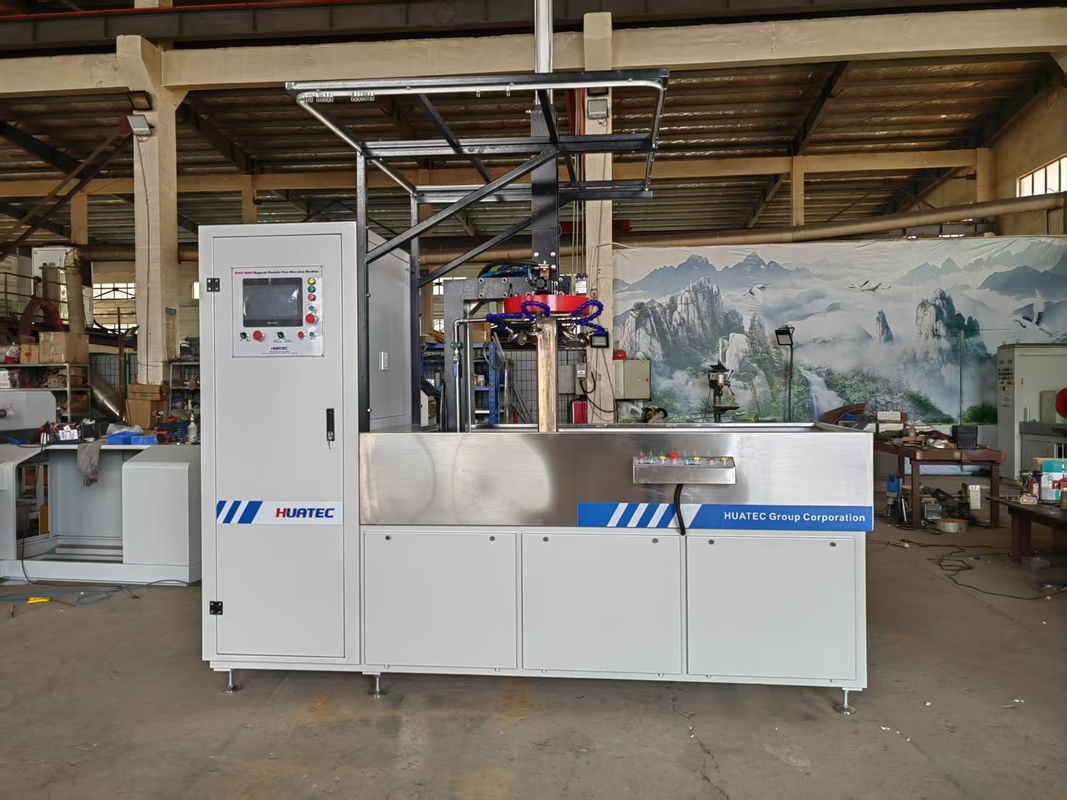

HMP-6000 triple-phase full wave AC-DC fluorescent magnetic particle detector is a kind of fixed
AC-DC multi-function semi-automatic wet fluorescent magnetic particle detection equipment. It is
designed based on principle of magnetization and manufactured according to the standard
requirements of JB/T8290-2011 Magnetic Particle Flaw Detection Machine.



This machine is suitable for non-destructive testing of the surface and near surface of parts made of
ferromagnetic materials such as ring-shaped components in industries such as machinery, automobiles,
aviation, internal combustion engines, and railways. It can detect extremely subtle defects such as cracks
and slag inclusions on the surface and near surface of parts caused by casting, forging, welding,
stretching, quenching, grinding, and fatigue.

Three phase full wave DC current DC 0-6000A
AC magnetizing current AC 0-6000A
Magnetizing time 0.5-9.9 seconds adjustable (magnetization time digital display), with an accuracy of 0.1 seconds;
Magnetization method Totally 6 kinds of magnetization modes, 1. circumferential DC unidirectional, 2.
circumferential AC unidirectional, 3. longitudinal DC unidirectional, 4. longitudinal AC unidirectional, 5.
Combined magnetization of longitudinal DC & circumferential AC, 6. Combined magnetization of
longitudinal AC & circumferential DC.
DC ultra-low frequency demagnetization current DC 6000A-0, pre-selected current, automatically
attenuates from the pre-selected value to zero;
AC attenuation demagnetization current AC 6000A-0, pre-selected current, automatically attenuates
from the pre-selected value to zero;
DC demagnetizing current frequency is divided into five categories 0.39Hz(5), 0.78Hz(4), 1.56Hz(3),
2.34Hz(2), 3.12Hz(1);
Demagnetization effect remanence after demagnetization ≤0.2mT;
Detection sensitivity standard AS5282 test block DC 3500A DC display 9 holes (in line with GJB 2028
and HB/Z72 standards); AC A-type No. 2 test piece shows clearly;
Magnetization current switching method pneumatic knife switch switching
Magnetizing coil fixed type

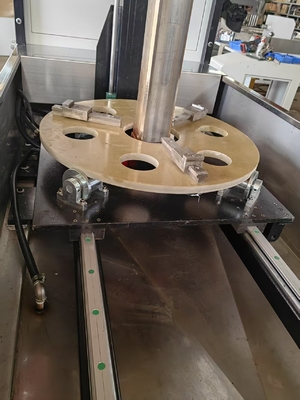

Clamping method one-way pheumatic clamping
Power supply three-phase four-wire 380V 50Hz 250A.

Operation principle

This machine is based on a small industrial programmable logic controller (PLC) and a
programmable touch screen (PT) as its core, which controls various actions of the system, such as
clamping, fixture movement, spraying magnetic suspension, magnetization, loosening, current direction 2
switching, current size adjustment, etc. It can complete all the inspection processes except for loading
and unloading and defect observation according to the prescribed program, and can be operated
automatically in one cycle or manually in one step.



Magnetization of the workpiece adopts unidirectional or composite magnetization mode, that is
circumferential magnetization and longitudinal magnetization respectively or cycled.

Fluorescent Magnetic particle inspection Inspection 0
