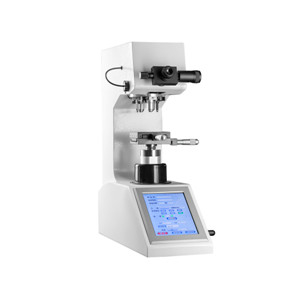

HV-1MDT-6 Auto Turret Micro Vickers Hardness Tester

HV-1MDT-6  Auto Turret Micro Vickers Hardness Tester
HV-1MDT-6  Auto Turret Micro Vickers Hardness Tester HV-1MDT-6  Auto Turret Micro Vickers Hardness Tester

Large Image :  HV-1MDT-6 Auto Turret Micro Vickers Hardness Tester

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HV-1MDT-6

HV-1MDT-6 Auto Turret Micro Vickers Hardness Tester

Description
Test Force: 10GF (0.098N), 25GF (0.245N), 50GF (0.49N), 100GF (0.98N), 200GF (1.96N), 300GF (2.94N), 500GF (4.9N), 1Kgf (9.8N) Measurement Resolution: 0.01μm
Data Display Output: 8-inch Touch Screen Displays Readings, Stores 20 Test Results, Has A Built-in Printer And RS-232 Interface, And An Optional USB Flash Drive Conversion Scale: Rockwell, Brinell
Highlight:

Micro Vickers Hardness Tester

,

Auto-turret Vickers Hardness Tester

,

Auto-turret Micro Vickers Hardness Tester

HV-1MDT-6 Auto-turret Micro Vickers Hardness Tester



Product introduction

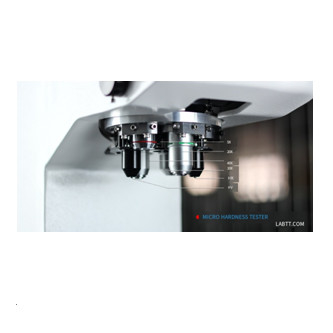

HV-1MDT-6 automatic turret micro Vickers hardness tester is equipped with Vickers, Knoop indenter and 4 kinds of objective lens.Vickers hardness and Knoop hardness values can be measured simultaneously.

Adopt optical cross guide rail lifting mechanism, force value is accurate, the image is clear, is an ideal high-end micro hardness tester.

Technical parameters

Model HV-1MDT-6
Test force 10GF (0.098N), 25GF (0.245N), 50GF (0.49N), 100GF (0.98N), 200GF (1.96N), 300GF (2.94N), 500GF (4.9N), 1Kgf (9.8N)
Meet standard GB/T4340.2, GB/T 18449.2,ASTM E92
Measurement resolution 0.01μm
Data display output 8-inch touch screen displays readings, stores 20 test results, has a built-in printer and RS-232 interface, and an optional USB flash drive
Conversion scale Rockwell, Brinell
Hardness test range 8 ~ 2900 HV/HK,
Test force application method Automatic (loading, preserving, unloading)
Test microscope magnification 400X, 200X, 100X, 50X (test, observation) (500X optional)
Test force dwell time 1-99s
Maximum allowable specimen height 100mm
Distance from indenter to wall 130mm
X-Y platform Size: 100*100mm Maximum movement: 25*25mm
Size 540*260*650mm
Weight About 50 kg
Power supply AC220V + 5%, 50 to 60 hz


Main features

  1. Installed with Vickers, Knoop head and 4 objectives;
  2. During the test, the indenter and the objective lens automatically switch to each other, and the test point automatically locates accurately.
  3. Lifting mechanism guided by optical cross rail ensures guiding accuracy;Using rack and pinion two stage force transmission, can achieve fast and smooth force transmission;
  4. LED light source, long life, no need to replace the bulb;
  5. Equipped with built-in camera, the image is clearer;
  6. It can be calibrated according to standard hardness blocks or length scales, and the hardness can be corrected automatically according to high, medium and low hardness values, so that the hardness value is more accurate.
  7. 8 inch touch screen interface, easy to operate;
  8. Data statistics save, easy to query and print out;
  9. Various hardness values convert to each other;
  10. Test setting parameters are protected by password;
  11. At least 3 languages such as Chinese and English are available;
  12. Equipped with RS-232 interface for computer connection;
  13. Optional maximum test force 2kg.
  1. Standard accessories:
Item Quantity Item Quantity
  • shaft
1
  •
  1.
Micrometer eyepiece (DHV-1000-10X)
  1.
Microhardness block (high block, medium block) Each 1
  1. -Y table
  1.
Nylon universal sole
  1.
  1. evel
  1.
Spare fuse (2A)
  1.
  1. ower cord
  1.
Dust cover
  1.
Product certificate, warranty card
  1.
  1. nstructions
  1.
Printing paper
  1.
Touch pen 1
  •
  1.





  1. Options:
Filaments clamp table
  1.
Flat mouth clamping platform
  1.
Wafer holder
  1.
Vickers measurement software 1 set
