FD620 Accurate Ultrasonic Flaw Detector With Mobile APP

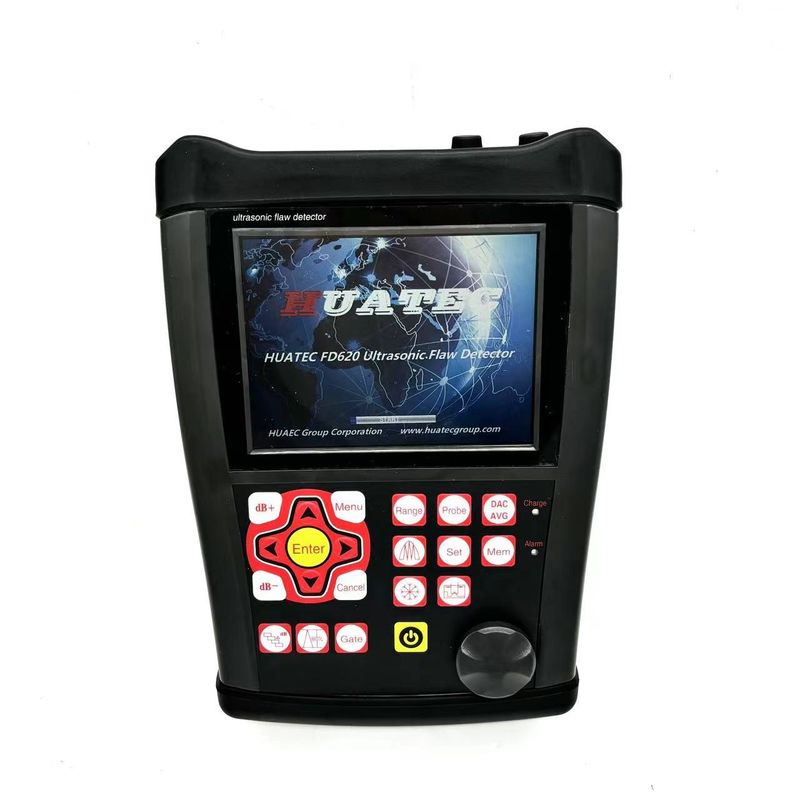

Large Image : FD620 Accurate Ultrasonic Flaw Detector With Mobile APP

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATEC
Certification:	ISO
Model Number:	FD620

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Carton
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union/Paypal
Supply Ability:	500PCS

Contact Now

FD620 Accurate Ultrasonic Flaw Detector With Mobile APP

Description

Name:

FD620 Ultrasonic Flaw Detector With Mobile APP

Warranty:

12 Months

Range:

0-25000 Mm

Velocity:

Material Velocity

Highlight:

Accurate Ultrasonic Flaw Detector

Mobile APP Ultrasonic Flaw Detector

FD620 Ultrasonic Flaw Detector With Mobile APP

DAC, AVG, color Bscan, AWS

Blue tooth connection, the mobile APP generates on-site flaw detection report and realizes printing

IP65 standard. Alloy + Silica gel case, water and dust proof, solid and lasts forever. Damping support makes it stands in any angle.

Battery lasts 15 hours for one charge. Each battery has own charging control so with two batteries it can work around the clock.

Range	0-25000 mm, at steel velocity
Material Velocity	100～20000m/s
Pulse Repetition Frequency	30-3000Hz
Dynamic range	≥38dB
Linearity	Horizontal: +/-0.2% FSW, Vertical: 2.5% FSH, Amplifier Accuracy +/-1 dB
Resolving Power	>40dB (5P14)
Sensitivity Leavings	>62dB
Reject (suppression)	0 to 80% full screen height

Test Modes	Pulse echo, dual element and thru-transmission
Probe Types	Single Straight, Single Angle, Dual Straight, Dual Angle, Through, Creeping, Surface
Gate Monitors	Two independent gates controllable over entire sweep range
Units	Inch or millimeter
Power Requirements	AC Mains 100-240 VAC, 50-60 Hz
Display Delay	-20 to 3400 µs
Probe Delay/Zero Offset	0 to 99.99µs
H×W×D(mm)	260×175×60 (mm)
Weight	1.2kg
Operating Temperature	-10℃ to 50℃
Storage Temperature	-30℃ to 50℃
Pulse Energy	200V, 300V, 400V, 500V selectable
Rectification	Positive half wave, negative half wave, full wave, RF System
Bandwidth (amplifier bandpass 0.2 to 20 MHz
Gate Monitors	Two independent gates controllable over entire sweep range
Sensitivity	120 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB
Transducer Connections	BNC or LEMO

500 independence setups, any criterion can be input freely, we can work in the scene without test block；

Big memory of 1000 A graph

Internal rechargeable Li-ion battery pack rated 7.2V at 8000 mAh

FD620 Accurate Ultrasonic Flaw Detector With Mobile APP 0
