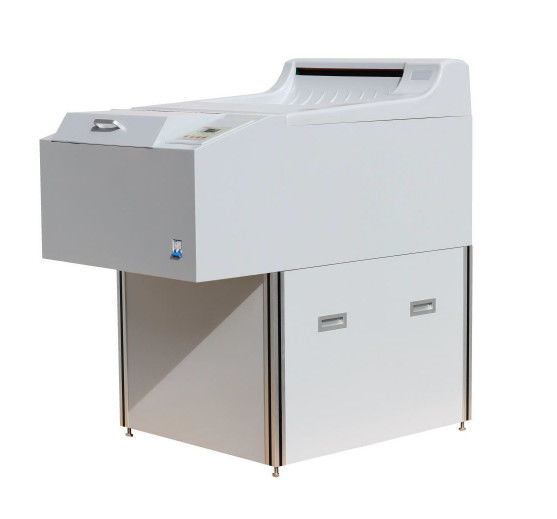

HDL-430D NDT Film Processor For Rolling Orflat Film

HDL-430D NDT Film Processor For Rolling Orflat Film
HDL-430D NDT Film Processor For Rolling Orflat Film HDL-430D NDT Film Processor For Rolling Orflat Film HDL-430D NDT Film Processor For Rolling Orflat Film

Large Image :  HDL-430D NDT Film Processor For Rolling Orflat Film

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: HDL-430D
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: in wooden box
Delivery Time: 8~10 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 pcs per month
Contact Now

HDL-430D NDT Film Processor For Rolling Orflat Film

Description
Produt Name: NDT Film Processor Model: HDL-430D
Film Size: Minimum: 50×100mm, Max. Width: 450mm Film Type: Roll Orflat Film
Highlight:

NDT film processor

,

Rolling Orflat Film processor

,

non destructive testing film processor

HDL-430D NDT Film Processor Used for Rolling Orflat Film



The machine is widely used in the quality inspection of boilers, shipbuilding, pressure vessels, oil and gas pipeline construction, aerospace and other equipment, and is widely praised by customers in the testing industry!



Specification
Model: HDL-430D
Film Size: Minimum: 50×100mm, Max. Width: 450mm
Film Type: roll orflat film
Film probes: 4 sets of micro inductive probes
Processing Time: 3.2～16min. (0.1min. adjustable)
Feed-in Speed:155～765 mm/min.
Processing Capacity: 350×430mm 22-109 sheets/hr,80×300mm 110-545 sheets/hr (when 5.4 min processing time)
Tank Volume: Dev. Fix. Wash.13L for each
Supplementary: automatically replenish water according to film size,waterreplenishment 50～700ml/㎡
Dev. Temp.: 20～40℃ (0.1℃ adjustable)
Fix. Temp.:automatically adjustable
Dry Temp.: 20～70℃ (5℃ adjustable)
Water Temp.: 5～30℃
Washing Controlling: when working: automatic water intake less than2L/min, standby: automatic shutdown
Power Consumption:110～240V 10A, 50 or 60Hz
Weight: G.W: 128kg, N.W: 88kg
Dimension: appr.: 108×71.5×113cm3

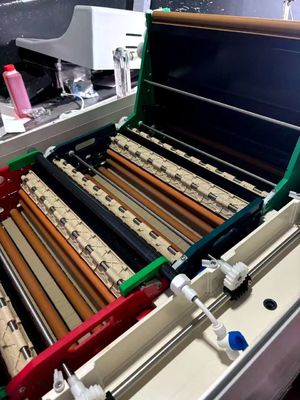

HDL-430D NDT Film Processor For Rolling Orflat Film 0

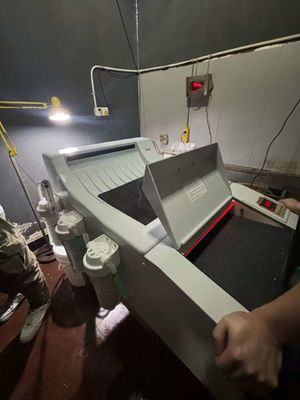

HDL-430D NDT Film Processor For Rolling Orflat Film 1
