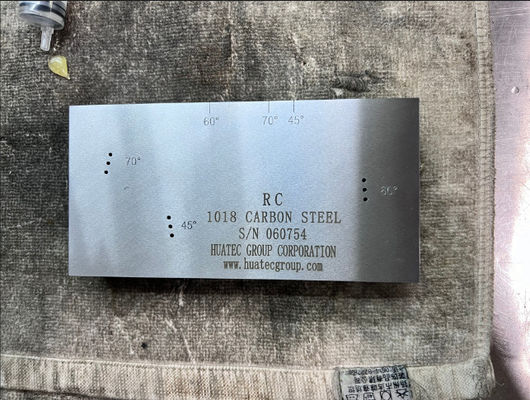

Top NDT Calibration Block RC Block With AWS D1.1/D1.1M-2015 Standard

Product name: Ultrasonic Flaw Detectors

Range: 0-10000 mm ,at steel velocity

Frequency: 10-2000Hz

Use: Welding Inspection

Name: FD620 Ultrasonic Flaw Detector with mobile APP

Warranty: 12 months

Range: 0-25000 mm

Velocity: Material Velocity

Pulse Width: 30～600ns with 1.0ns 10.0ns per step

Bandwidth: 0.5～20.8MHz

Gain Range: 0～55dB with 1.0dB 10.0dB per step

Filter: Low/mid/high

Display: 7 inch TFT color screen，800*480 resolution

Material Velocity: 100~20000m/s

Pulse displacement: -10~1000mm

Testing Range: 0~15000mm，Minimum display range:15mm（in steel）

Material Velocity: 100～20000m/s

Dynamic range: ≥38dB

Sensitivity Leavings: >62dB

Reject (suppression): 0 To 80% Full Screen Height
