X Γ Neutron Personal Radiation Dose Alarm Device Neutron Gamma Personal Radiation Alarm

X Γ Neutron Personal Radiation Dose Alarm Device Neutron Gamma Personal Radiation Alarm
X Γ Neutron Personal Radiation Dose Alarm Device Neutron Gamma Personal Radiation Alarm X Γ Neutron Personal Radiation Dose Alarm Device Neutron Gamma Personal Radiation Alarm

Large Image :  X Γ Neutron Personal Radiation Dose Alarm Device Neutron Gamma Personal Radiation Alarm

Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO,CE
Model Number: FJ-6102N
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: in carton box
Delivery Time: 3-7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 pcs per month
Contact Now

X Γ Neutron Personal Radiation Dose Alarm Device Neutron Gamma Personal Radiation Alarm

Description
Product Name: Neutron Gamma Personal Radiation Alarm Sensor: CsI+ SiPM Solid State Photomultiplier
Display Units: Dose Equivalent Rate：μSv/h Dimensions: (102×62×28) Mm
Highlight:

Neutron Personal Radiation Dose Device

,

Personal Radiation Dose Alarm Device

,

Neutron Personal Radiation Alarm

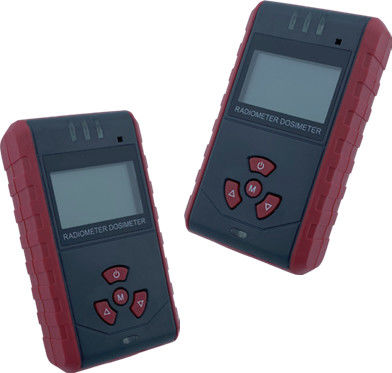

X, γ, And Neutron Personal Radiation Dose Alarm Device Neutron Gamma Personal Radiation Alarm



The FJ-6102N series X, γ, and neutron personal radiation dose alarm device utilizes a high-speed, low-power embedded microprocessor as the data processing unit. The gamma detector employs a highly sensitive GM counter. The instrument is characterized by its fast response, wide measurement range, and broad application scope. It can monitor X-rays, gamma rays, and neutron radiation, making it a versatile radiation dose measuring device.



Application

1.Personalaccumulated dose alarm
2.Personal dose rate alarm
3.Sample radiation dose rate assessment
4.Building radiation dose rate measurement
5.Radiation dose rate measurement in hospitals, factories, schools, etc.



Features

1.Highly sensitive CsI cesium iodide scintillator + SiPM sensor
2.Large-area dot matrix LCD display with backlight
3.Dual-color encapsulated housing design for better feel
4.Simultaneous measurement and display of dose rate and cumulative dose
5.Pulse source-seekingfunction for quickly locating and pinpointing radioactive sources.
6.Automatic range switching
7.Automatic saving of accumulated dose and duration, data retained during power loss
8.Adjustable dose rate alarm and cumulative dose alarm thresholds
9.Selectable alarm modes: sound, vibration, sound+vibration, silent
10.Built-in large-capacity rechargeable lithium battery with real-time battery voltage indication
11.Automatic fault detection and protection function
12.Capability to store 60000 real-time records and 32000 alarm records
13.Records exportable via USB (specialized software optional)
14.Optional Bluetooth communication and mobile app



Key Technical Specifications

  FJ-6102NG FJ-6102NE
Sensor CsI+ SiPM solid state photomultiplier LiF + SiPMsolid state photomultiplier
Measurement range Dose equivalent rate:0.01μSv/h～1000μSv/h, 0.1cps～9999kcps
Dose equivalent:0.00μSv ～9999Sv
Energy range of registered photon-ionizing radiation 25keV～3.0MeV thermal neutron～15MeV
Display Units Dose equivalent rate:μSv/h,mSv/hauto-changeover； cps
Dose equivalent:μSv,mSv,Sv auto-changeover；
Count rate:cps
Gamma sensitivity ≥70cps/(μSv/h)
Energy response errorless than(relative to 137Cs) ±30%
Relative errorless than ±15%
(at 10μSv/h,137Cs)
Dose equivalent rate alarm threshold Full range adjustable
Dose equivalent alarmthreshold Full range adjustable
Protective alarm response time ≤3s
Power supply method Built in 3.7V, 900mA lithium battery, Type-C USB charging interface
Dimensions (102×62×28) mm
Weight 100g
Operating temperature range -10℃～＋50℃
Relative humidity ≤95%(40±2)℃
** Technical specifications are for reference only, please refer to the actual product model.
