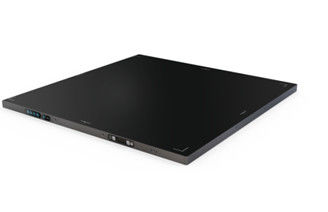

Lightweight Wireless Flat Panel DR Detector Based On Amorphous Silicon A-Si For Various Fields DR And Non-Destructive Testing

Lightweight Wireless Flat Panel DR Detector Based On Amorphous Silicon A-Si For Various Fields DR And Non-Destructive Testing
Lightweight Wireless Flat Panel DR Detector Based On Amorphous Silicon A-Si For Various Fields DR And Non-Destructive Testing

Large Image :  Lightweight Wireless Flat Panel DR Detector Based On Amorphous Silicon A-Si For Various Fields DR And Non-Destructive Testing

Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO,CE
Model Number: H3543HWC-EG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: in carton box
Delivery Time: 7-10 working days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Contact Now

Lightweight Wireless Flat Panel DR Detector Based On Amorphous Silicon A-Si For Various Fields DR And Non-Destructive Testing

Description
Product Name: DR And Non-destructive Testing Detector Model: H3543HWC-EG
Receptor Type: A-Si Scintillator: Gos / CsI:TI
Active Area: 350 X 430 Mm Pixel Pitch: 139 μm
Highlight:

Amorphous Silicon DR Detector

,

Wireless Flat Panel DR Detector

,

Flat Panel DR Detector

Lightweight Wireless Flat Panel DR Detector Based on Amorphous Silicon(a-Si) For Various Fields DR and Non-Destructive Testing



Electricals and interface
A/D Conversion 16 bits

Data Interface Gigabit Ethernet/802.11ac (only 5G)

Acquire Time wired: 1s; wireless: 3s

Exposure Control Software/AED
Memory 4 GB DDR4, 8 GB SD card



Mechanical
Dimension 388.8×459×15 mm
Weight 3.4kg (without battery)

Material Aluminum andmagnesium alloys

Front Panel Carbon fiber

Narrowest edgedistance≤5mm



Enviromental

Temperature 10-35°C (operating)；-10~50°C (storage)

Humidity 30-70% RH (non-condensing)

Ingress Protection IP51 (Customized to IP67)



Sensor
Receptor Type a-Si

Scintillator Gos / CsI:TI

Active Area 350 x 430 mm

Resolution 2560 x 3072

Pixel Pitch 139 μm



Power Supply & Battery

Adapter In AC 100-240V,50-60Hz

Adapter Out DC 24V,2.7A

Power Dissipation <20 W

Standby Time 6.5h

Recharge Time 4.5 h



Image Quality
Limiting Resolution 5 LP/mm

Energy Range 40-160 KV

Dynamic Range ≥76 dB

Sensitivity ≥0.36LSB/nGy

Ghos <1% 1st frame

DQE 38% @(1 LP/mm)

                              21% @(2 LP/mm)

MTF 75% @(1 LP/mm)

                              48% @(2 LP/mm)

                              28% @(3 LP/mm)

Lightweight Wireless Flat Panel DR Detector Based On Amorphous Silicon A-Si For Various Fields DR And Non-Destructive Testing 0
