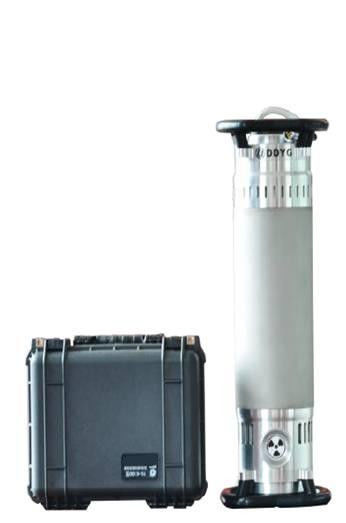

Portable High Frequency X Ray Flaw Detector NDT Instrument

Portable High Frequency X Ray Flaw Detector NDT Instrument
Portable High Frequency X Ray Flaw Detector NDT Instrument

Large Image :  Portable High Frequency X Ray Flaw Detector NDT Instrument

Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO,CE
Model Number: XXG-300GF
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: in carton box
Delivery Time: 5~10 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50sets per month
Contact Now

Portable High Frequency X Ray Flaw Detector NDT Instrument

Description
Product Name: High Frequency X-ray Flaw Detector Focus Size: 3.0×3.0
Radiation Angle: 40°×40° Maximum Penetration（Fe）: 70mm (A3)
Highlight:

NDT X-Ray Flaw Detector

,

Portable NDT Instrument

,

Portable X-Ray Flaw Detector

NDT Instrument Portable High Frequency X-ray Flaw Detector



Main performance:

 Continuous exposure under the conditions of 35℃ 300kv/3mA, 250kv/3mA;

 Wide input voltage range to meet the power supply of various generators;

 Lightweight, strong penetration, stable performance;

 More suitable for use in harsh and humid environments;

 The operation interface is intuitive and easy to operate;



Main technical parameters

project name XXG-300GF XXG-250GF
X-ray generator Weight 27kg 25kg
Dimensions Φ295×752 (Φ×L) Φ295×704 (Φ×L)
Controller Weight 11kg 11kg
Dimensions 410×228×300 (L×B×H) 410×228×300 (L×B×H)
Focus size 3.0×3.0 3.0×3.0
Radiation angle 40°×40° 40°×40°
Maximum penetration(Fe) 70mm (A3) 60mm (A3)
kV Adjustment range 120～300 kV 70～250 kV
mA Adjustment range 0.5～3 mA(Stepping 0.1mA) 0.5～3 mA(Stepping 0.1mA)
Maximum power 900W 900W
Leakage radiation value maximum 5.0msv/h maximum 5.0msv/h
Operating temperature -20˚C～+50˚C -20˚C～+50˚C
Storage temperature -25˚C～+70˚C -25˚C～+70˚C
Voltage 85～264 VAC 85～264 VAC
Power frequency 45～65 Hz 45～65 Hz

Portable High Frequency X Ray Flaw Detector NDT Instrument 0

Portable High Frequency X Ray Flaw Detector NDT Instrument 1
