Magnetic Particle Flaw Detector Accessories Adjustable UV Headlamp

Magnetic Particle Flaw Detector Accessories Adjustable UV Headlamp

Main features

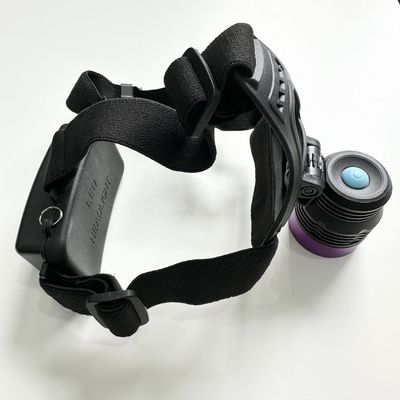

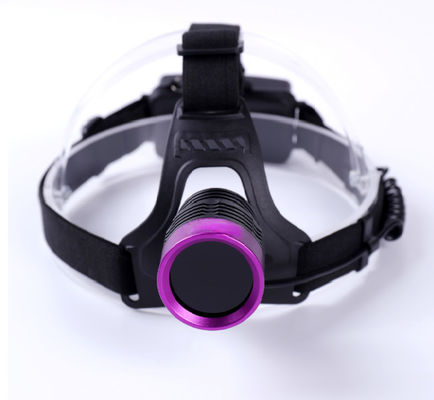

A new palm-sized, hands-free light source that can be worn on the head with a UV helmet type

black light that frees the user's hands during inspections.

Helmet-type black lamp is an ideal test tool for fluorescent magnetic particle and penetration

inspection, mine inspection, etc.

The DG-3101S UV headlamp is equipped with the powerful UV-A (365 nm) LED lamp design.

The on/off button of the DG-3101S UV helmet type black light is positioned on the back of the light

to prevent accidental switching; DG-3101S UV helmet type black light specially designed.

Constant current drive line, can keep the UV intensity constant, even when the battery capacity is

insufficient.

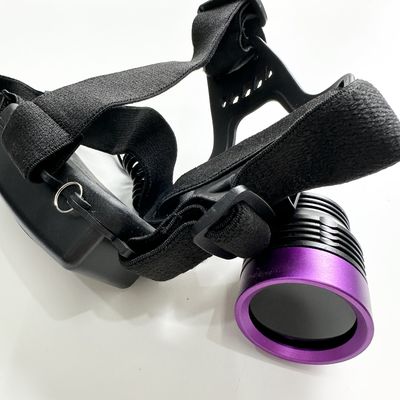

DG-3101S UV helmet type black light head can be 90 degrees up-and-down adjustment.

Technical parameter

1,Peak wavelength:365-370nm;

2,Ultraviolet intensity:10000μW/ cm distance is 38cm;

3,UV LED quantity:1× 5W 365nm UV LED,LED The average life span is 30,000 hours;

4,Power:2pcs of 18650 Lithium battery,4400mAh,Usage time: 3.5 hours

5,Irradiated area:_50mm at a distance of 38 centimeters

6,Dimension:40 ×38mm,weight:200g no accessories

Helmet type black light product application

▪ Refrigerant leak detection

Penetration testing, fluorescence detection

▪ Engine oil leak detection

▪ Forensics fingerprints, blood observations

▪ Fluorescence observation of ore

Biopolymers, fluorescence observation

Helmet type black light product standard configuration

Host, a pair of LUV-10 glasses, charger, manual, certificate, warranty card
