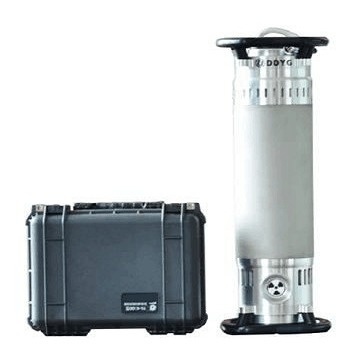

Portable High Frequency X ray Flaw Detector

Large Image : Portable High Frequency X ray Flaw Detector

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATEC
Certification:	ISO
Model Number:	XXG-300GF

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Wooden
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union/Paypal
Supply Ability:	500PCS

Contact Now

Portable High Frequency X ray Flaw Detector

Description

Name:

High Frequency X-ray Flaw Detector

KV Adjustment Range:

120～300 KV

MA Adjustment Range:

0.5～3 MA(Stepping 0.1mA)

Maximum Power:

900W

Highlight:

High Frequency Xray flaw detector

Portable X-ray flaw detector

Portable high frequency X-ray flaw detector

Main performance:

n Continuous exposure under the conditions of 35℃ 300kv/3mA, 250kv/3mA;

n Wide input voltage range to meet the power supply of various generators;

n Lightweight, strong penetration, stable performance;

n More suitable for use in harsh and humid environments;

n The operation interface is intuitive and easy to operate;

Main technical parameters

project name		XXG-300GF	XXG-250GF
X-ray generator	Weight	27kg	25kg
X-ray generator	Dimensions	Φ295×752 (Φ×L)	Φ295×704 (Φ×L)
Controller	Weight	11kg	11kg
Controller	Dimensions	410×228×300 (L×B×H)	410×228×300 (L×B×H)
Focus size		3.0×3.0	3.0×3.0
Radiation angle		40°×40°	40°×40°
Maximum penetration(Fe)		70mm (A3)	60mm (A3)
kV Adjustment range		120～300 kV	70～250 kV
mA Adjustment range		0.5～3 mA(Stepping 0.1mA)	0.5～3 mA(Stepping 0.1mA)
Maximum power		900W	900W
Leakage radiation value		maximum 5.0msv/h	maximum 5.0msv/h
Operating temperature		-20˚C～+50˚C	-20˚C～+50˚C
Storage temperature		-25˚C～+70˚C	-25˚C～+70˚C
Voltage		85～264 VAC	85～264 VAC
Power frequency		45～65 Hz	45～65 Hz

Portable High Frequency X ray Flaw Detector 0
