NDT Radiography Lead Intensifying Screen For X Ray Flaw Detector Accessories

NDT Radiography Lead Intensifying Screen For X Ray Flaw Detector Accessories
NDT Radiography Lead Intensifying Screen For X Ray Flaw Detector Accessories NDT Radiography Lead Intensifying Screen For X Ray Flaw Detector Accessories

Large Image :  NDT Radiography Lead Intensifying Screen For X Ray Flaw Detector Accessories

Product Details:
Place of Origin: CHINA
Brand Name: HUATEC
Certification: ISO
Model Number: Lead screen
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: carton
Delivery Time: 5-8 working days
Contact Now

NDT Radiography Lead Intensifying Screen For X Ray Flaw Detector Accessories

Description
Name: Radiography X Ray Lead Screen Material: Plastic And Lead
Key Words: NDT Radiography Lead Intensifying Screen Usage: Accessories For X Ray Flaw Detector
Highlight:

xray Flaw Detector Intensifying Screen

,

NDT Radiography Lead Intensifying Screen

,

NDT Lead Intensifying Screen

Radiography X Ray Lead Screen

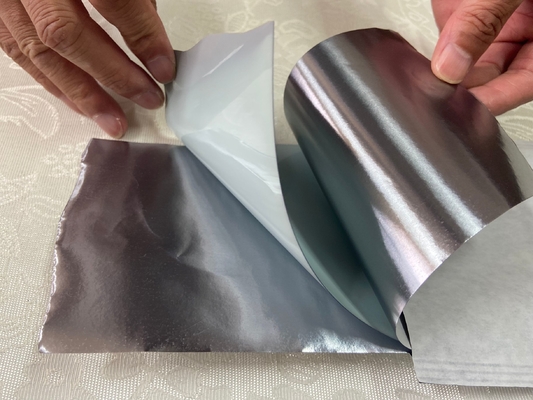

Intensifying Screens are primarily used to intensify the radiographic image. They are generally used in pairs by placing the x-ray
film between the bare lead surfaces of the screens. Each screen surface is protected with a semitransparent coating, which must
bepeeled off prior to use. For maintaining long-lasting screens it is highly recommended that a cassette be used.
The base material
1)Paper or PVC
2)The size can be customed according to clients' requirement
3)The width is up to 430mm, the thickness is 0.03mm to 0.25mm



The general sizes we supply. also can produce size according to clients' requirement.
Lead screen 100x120x0.03mm
Lead screen 100x200x0.03mm
Lead screen 100x240x0.03mm
Lead screen 100x480x0.03mm
Lead screen 80.5x300.5x0.1mm
Lead screen 85x305x0.1mm
Lead screen 80.5x150x0.1mm
Lead screen 100x120x0.1mm
Lead screen 100x200x0.1mm
Lead screen 100x240x0.1mm
Lead screen 180x240x0.1mm
Lead screen 100x400x0.1mm
Lead screen 100x480x0.1mm
Lead screen 240x300x0.1mm
Lead screen 350x430x0.1mm
Lead screen 100x200x0.2mm
Lead screen 100x400x0.2mm
Lead screen 100x200x0.125mm
Lead screen 100x240x0.125mm
Lead screen 100x240x0.5mm
Lead screen 180x240x0.5mm
Lead screen 240x300x0.5mm
Lead screen 100x480x0.5mm
Lead screen 350x430x0.5mm
Lead screen 100x254x0.125mm (4"x10"x0.125mm)
Lead screen 100x381x0.125mm (4"x15"x0.125mm)
Lead screen 100x400x0.125mm
Lead screen 100x480x0.125mm
Lead screen 150x400x0.125mm
Lead screen 180x430x0.125mm
Lead screen 89x430x0.127mm (3.5"x17"x0.005“)
Lead screen 115x430x0.127mm (4.5"x17"x0.005“)
Lead screen 89x430x0.254mm (3.5"x17"x0.010”)
Lead screen 115x430x0.254mm (4.5"x17"x0.010“)
Lead screen 14"x17"x0.125mm

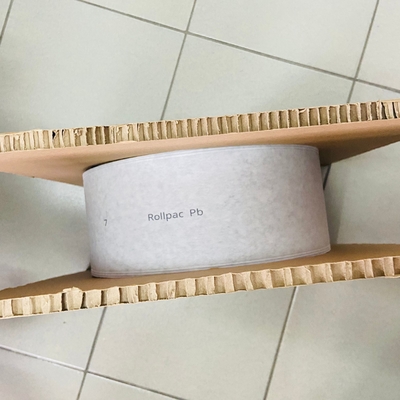

Lead screen roll W80mm X T0.03mmX 5 meters
Lead screen roll W80mm X T0.03mmX 10 meters
Lead screen roll W80mm X T0.03mmX 15 meters



We also can supporty other NDT X-ray accessories,such as Film, Lead marker, Lead tape, IQI, Film Viewer, NDT Professional Film developer and so on.
