1/2-T-R High Resolution TFT Screen (640×480) Railway Digital Ultrasonic Flaw Detector

The FD-GT-1010 digital ultrasonic flaw detector features a 1/2-T-R high resolution TFT screen (640×480) that maintains excellent visibility even in outdoor or intense sunlight conditions.

Developed with leading domestic square wave drive technology, the FD-GT-1010 offers stable performance, portability (weighing only 1.5kg), and ease of operation. It complies with vessel standard TSG R0004-2009 and European Standard EN12668-1:2010.

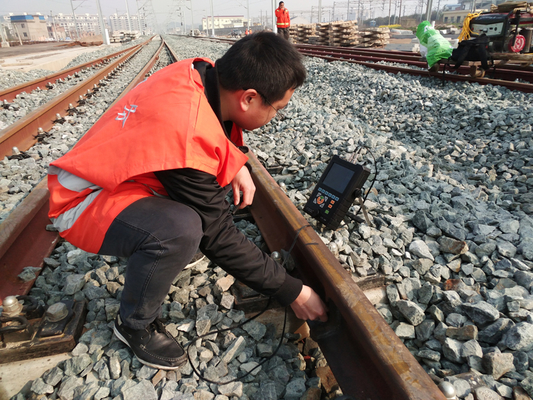

With a battery life of 6-8 hours of continuous operation, this device is ideal for mobile or aerial work in petrochemical, pressure vessel, power generation, and railway transportation applications.

• High-performance circuitry: 640MHz sampling frequency ensures accurate detection and interpretation of even the smallest flaws with real-time echo signal processing.
• Advanced square wave drive: Exceptional penetration with high signal-to-noise ratio for high-attenuation materials or thick workpieces. Adjustable drive parameters optimize resolution for thin materials or composites.
• PIR digital filtering: Enhances signal-to-noise ratio and includes probe frequency spectrum analysis.
• Superior display: 5.7" trans-reflecting TFT screen (640×480) designed for outdoor and bright light conditions.
• Comprehensive standards compliance: Meets EN12688-1:2000 and TSG R0004-2009 standards with extensive recording and storage capabilities.
• Smart automation: Auto velocity adjustment, parameter adaptation for different probes, and easy DAC/AVG curve generation.
• Expansion capabilities: SD card slot for mass storage, USB port for external devices, keyboard/mouse support, and PC communication.
• Ergonomic design: Multi-angle adjustable handle and lightweight construction (1.5kg) with built-in battery and charger.
