AC Magnetic Yoke Flaw Detector HCDX-Y2 BS EN ASTM Compliant

AC Yoke Magnetic Particle Inspection Yoke
Magnetic yoke flaw detector HCDX-Y2

The HCDX-Y2 is an AC electromagnetic yoke, ergonomically designed to improve productivity. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing.

Lightweight with an ergonomic grip and trigger, the HCDX-Y2 is designed for the rugged demands of field inspection. Featuring replaceable spare parts body design, isolated trigger switch, power cord, mainboard, UV & white light lamp and legs all can be replaced by user, the HCDX-Y2 is easily serviceable not stop a job from getting done.

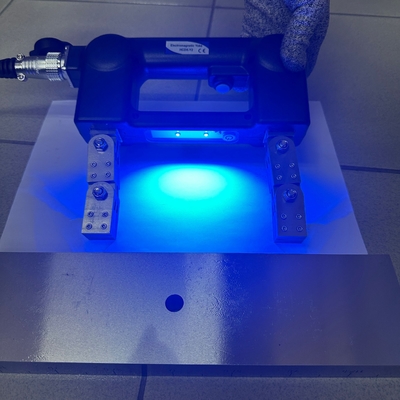

A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including Red and Gray magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.

• Ergonomic, light-weight design
• IP54 sealed housing resists dust and water
• Field-swappable power cord
• Isolated, replaceable trigger switch
• Steel shields for leg protection
• Exceeds ASTM lifting specifications

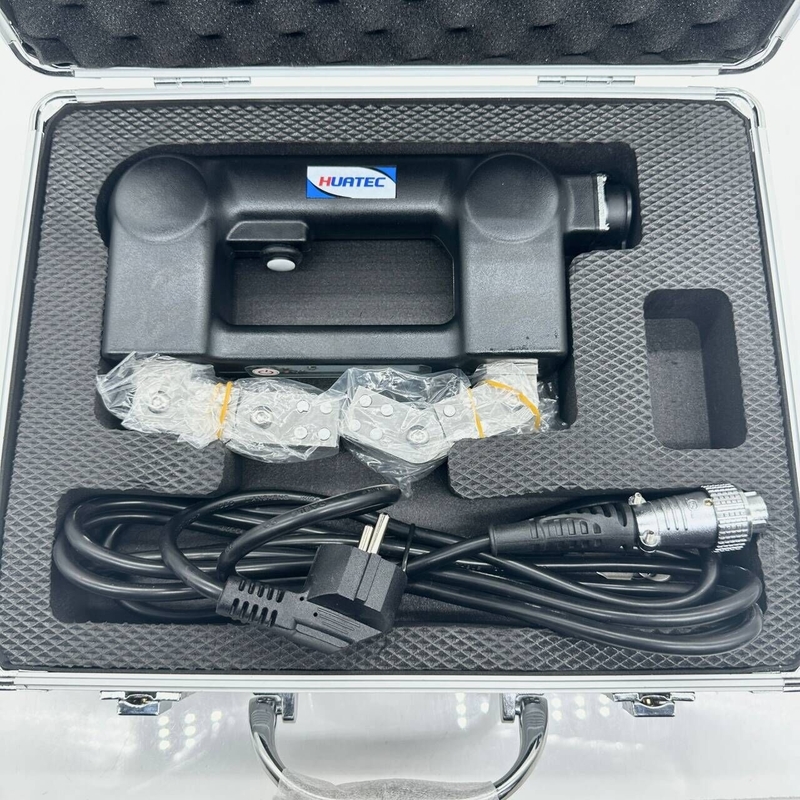

• Convenient carrying case supplied with all yoke shipments
• Optional LED UV & White yoke light lasts longer and is more intense compared to traditional bulbs
• Two power supply modes are optional:
  • 110V/220V/240V Single-phase AC power supply (straight plug mode)
  • DC magnetization power supply (DC battery pack with digital display screen)
• Optional special waist pack can carry magnetized power battery, magnetic suspension, contrast agent etc.

Defect location: Surface

Ideal for:

• Field Testing
• Difficult to reach areas
• Spot, weld and in-service inspections

Defect examples:

• Seams
• Tears
• Shrink cracks
• Quenching cracks
• Fatigue cracks

• JB/T7411-2012
• ASTM E1444-05
• ASTM E709
• EN10228-1:1999
• ISO 9934
• ASTM E 3024
