DG-9W Portable UV LED 365nm Lamp 7000uW/cm2 Intensity

Large Image : DG-9W Portable UV LED 365nm Lamp 7000uW/cm2 Intensity

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	DG-9W

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD450-USD510/SET
Packaging Details:	aluminum alloy box+Outer carton packaging
Delivery Time:	5-7 working days after receipt of your payment
Payment Terms:	T/T, Western Union,Paypal

Contact Now

DG-9W Portable UV LED 365nm Lamp 7000uW/cm2 Intensity

Description

UV(Light)-FLUX Indoor Temperature 25℃:	8000uW/cm - Light-MAX1500LUX	Grading Feature:	Centre Grading
Battery Capacity:	5800mA/H 12.6V	White Light In Black Light:	>30LUX
Battery Life (cumulative Time):	UV LED 5-6H Or Light 16H	Lamp Life:	20000H
Highlight:	portable UV LED lamp , 365nm UV lamp 7000uW/cm2 , magnetic particle testing UV light

DG-9W 7000 uW/cm² Intensity Portable UV LED 365nm Lamp

Key Specifications

Attribute	Value
UV(Light)-FLUX Indoor temperature 25℃	8000uW/cm - Light-MAX1500LUX
Grading feature	Centre grading
Battery Capacity	5800mA/H 12.6V
White light in black light	>30LUX
Battery Life (cumulative time)	UV LED 5-6H or Light 16H
Lamp life	20000H

Product Description

The DG-9W 7000 uW/cm² intensity Portable UV LED 365nm Lamp represents a significant advancement in electronic technology, developed with our company's professional expertise and rich experience. This product is designed to replace conventional UV lamps, overcoming numerous shortcomings of previous generation black light lamps.

Technical Parameters

Formal: Handheld

UV (Light) -FLUX Calibration at room temperature 25℃ 380mm: 8000uW/cm - Light-MAX1500LUX

FLUX Error: 0-40℃ ±10%

380mm area (more than 1000uw/cm): about 220mm in diameter, center source

Light Distribution Characteristics: Center light distribution

Power Supply: AC100-240V 50/60Hz

Power: UV LED-9VA Light-3VA

Wavelength: Room temperature 25℃ 3nm 365nm (UVA)

Outline Size: 203mm(W)*110mm(D)*220mm(H)

Weight: 1Kg

Battery Capacity: 5800mA/H 12.6V

Charging Time: 4-5H

Safety & Usage Conditions

Do not use in the following environments:

Direct sunlight exposure
Areas with rapid temperature changes that produce condensation
Temperatures below -10℃ or above 40℃
Humidity greater than 85% or areas with rain/liquid splash
Locations with vibration and shock

Maintenance Guidelines

Keep special glass clean
Maintain clean appearance
Regularly clean fan filter (not exceeding 60 days cumulative time)
Use only neutral detergent for cleaning

Important: Do not cover lamp shell or air duct. No display, shelving or installation of other items allowed. Install product correctly according to technical parameters.

Warranty Information

Standard warranty period: 1 year from shipment date (unless otherwise agreed)
Warranty void if serial number altered or seal damaged
Damage from natural disasters not covered
Improper use or installation not in accordance with safety conditions voids warranty

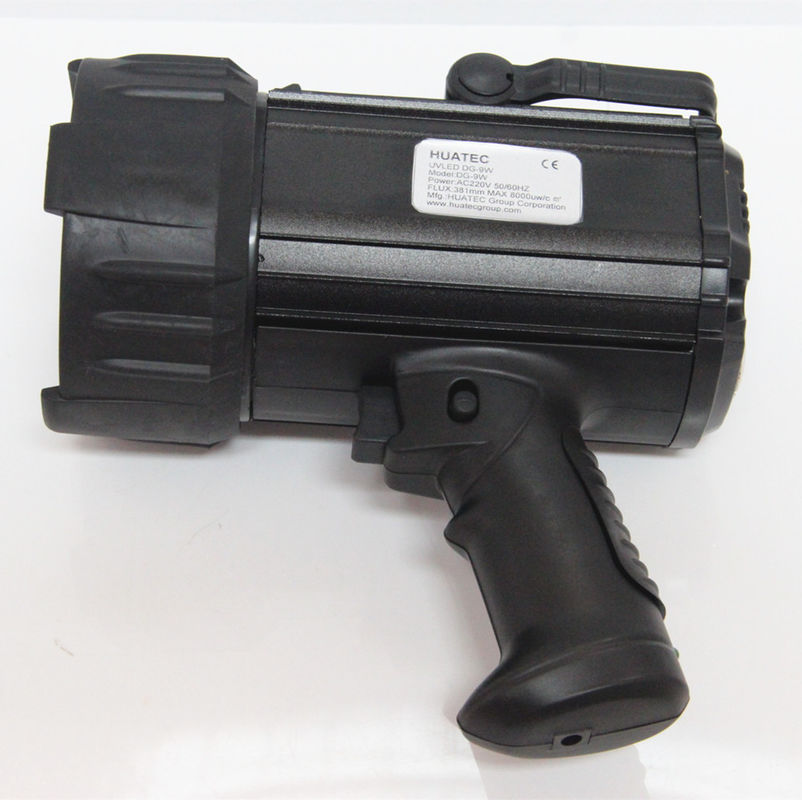

Product Images
