Helmet-Type Black Adjustable UV Headlamp

Large Image : Helmet-Type Black Adjustable UV Headlamp

Product Details:

Place of Origin:	China
Brand Name:	Huatec
Certification:	ISO，CE
Model Number:	DG-3101S

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	High quality carton
Delivery Time:	3~7 working days
Payment Terms:	L/C, T/T, Western Union,Paypal
Supply Ability:	100 sets per month

Contact Now

Helmet-Type Black Adjustable UV Headlamp

Description

Product Name:	UV Headlamp	Model:	DG-3101S
Peak Wavelength:	365-370nm	Ultraviolet Intensity:	10000μW/ Cm Distance Is 38cm
Power:	2pcs Of 18650 Lithium Battery	Dimension:	40 ×38mm
Highlight:	helmet-type UV headlamp , adjustable black headlamp , magnetic particle testing headlamp

Helmet-Type Black Adjustable UV Headlamp

Main features

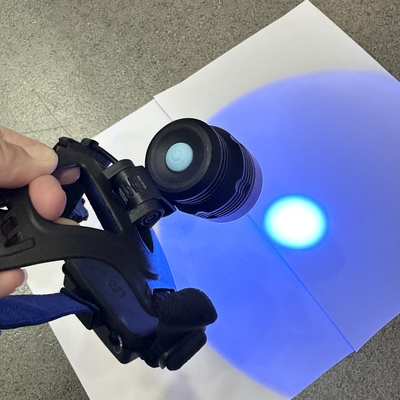

A new palm-sized, hands-free light source that can be worn on the head with a UV helmet type black light that frees the user's hands during inspections.

Helmet-type black lamp is an ideal test tool for fluorescent magnetic particle and penetration inspection, mine inspection, etc.

The DG-3101S UV headlamp is equipped with the powerful UV-A (365 nm) LED lamp design.

The on/off button of the DG-3101S UV helmet type black light is positioned on the back of the light to prevent accidental switching; DG-3101S UV helmet type black light specially designed.

Constant current drive line, can keep the UV intensity constant, even when the battery capacity is insufficient.

DG-3101S UV helmet type black light head can be 90 degrees up-and-down adjustment.

Technical parameter

Peak wavelength	365-370nm
Ultraviolet intensity	10000μW/ cm distance is 38cm
UV LED quantity	1× 5W 365nm UV LED,LED The average life span is 30,000 hours
Power	2pcs of 18650 Lithium battery,4400mAh,Usage time: 3.5 hours
Irradiated area	_50mm at a distance of 38 centimeters
Dimension	40 ×38mm
weight	200g no accessories

Helmet type black light product application

▪ Refrigerant leak detection

Penetration testing, fluorescence detection

▪ Engine oil leak detection

▪ Fluorescence observation of ore

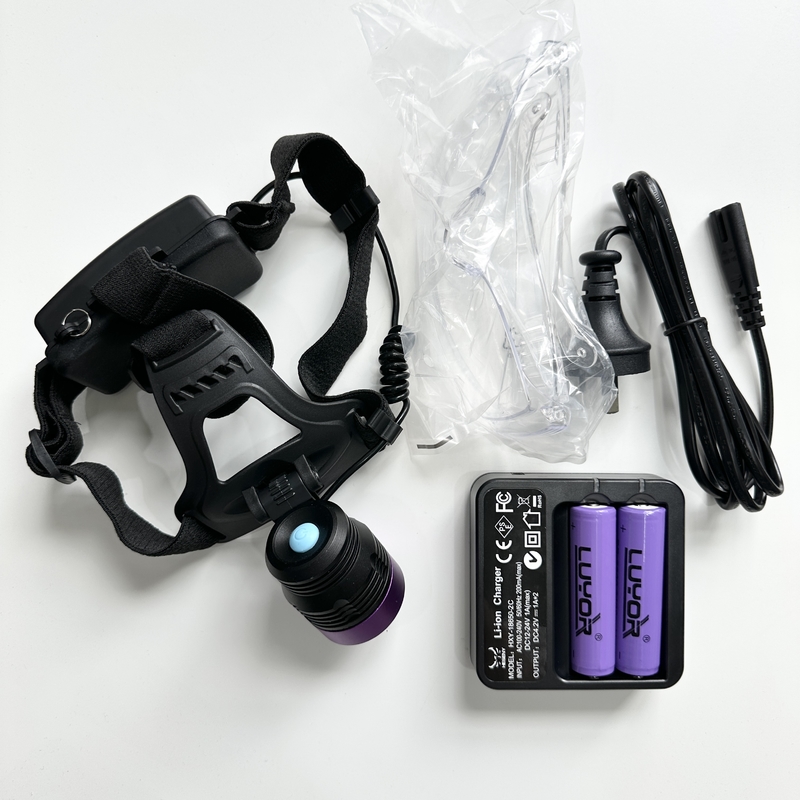

Helmet type black light product standard configuration

Host, a pair of LUV-10 glasses, charger, manual, certificate, warranty card
