UV-5070A 30000H Light Source Hanging Type UV-A UV Irradiation and White Light Lamp

Large Image : UV-5070A 30000H Light Source Hanging Type UV-A UV Irradiation and White Light Lamp

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Model Number:	UV-5070A

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD690-USD780/SET
Packaging Details:	Outer carton packaging
Delivery Time:	5-7 working days after receipt of your payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

UV-5070A 30000H Light Source Hanging Type UV-A UV Irradiation and White Light Lamp

Description

Effective Irradiation Area Calibration At 380mm:	420*500mm	White Light Illumination:	＞1200LUX
UV-FLUX Room Temperature 25 ℃:	1000-6000uW/cm ²	Wavelength:	Room Temperature 25 ℃ 365nm-370nm (UVA)
FLUX Error:	0-40℃ ±10％	Power:	UV LED-72VA 24P*3VA
Highlight:	hanging type UV-A lamp , UV irradiation white light lamp , magnetic particle testing UV lamp

UV-5070A 30000H Light Source Hanging Type UV-A UV Irradiation and White Light Lamp

Features:

Complies with MFS0744/ASTM E3022 standards.

The average lifespan of a 30000H light source.

UV-A center irradiance>1000-6000uW/cm ²

The UV-B/UV-C content is 0.

Compact in size, easy to install.

Continuous working with a surface temperature rise of less than 8K (8 ℃).

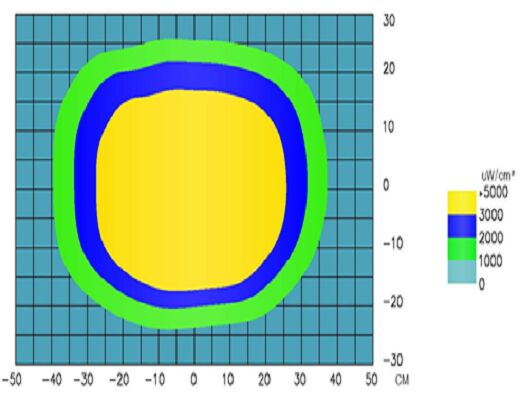

UV irradiation distribution map

No preheating required, instantly reaching 100% power.

Item	Parameters/Methods
formalize	Hanging
UV-FLUX Room temperature 25 ℃	Calibration center irradiance at 380mm is greater than 1000-6000uW/cm ²
Effective irradiation area Calibration at 380mm	420*500mm
White light illumination	＞1200LUX
Wavelength	Room temperature 25 ℃ 365nm-370nm (UVA)
White light content	＜10LUX
UV-B/UV-C	No
FLUX error	0-40℃ ±10％
Light distribution characteristics	Central lighting distribution
Power supply	AC100-240V 50/60Hz
Power	UV LED-72VA 24P*3VA
Overall dimensions	574mm(W)82mm(D)224mm(H)
Weight	3.6Kg
