Portable 32:128PR Phased Array Ultrasonic Flaw Detector

Portable 32:128PR Phased Array Ultrasonic Flaw Detector
Portable 32:128PR Phased Array Ultrasonic Flaw Detector Portable 32:128PR Phased Array Ultrasonic Flaw Detector Portable 32:128PR Phased Array Ultrasonic Flaw Detector

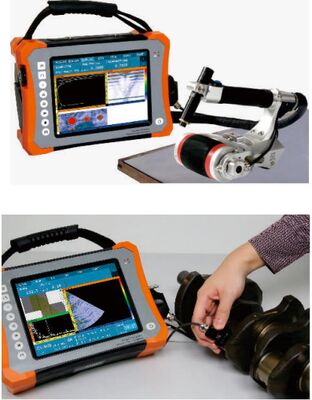

Large Image :  Portable 32:128PR Phased Array Ultrasonic Flaw Detector

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: HPA-620
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: in carton
Delivery Time: 5~8 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per month
Contact Now

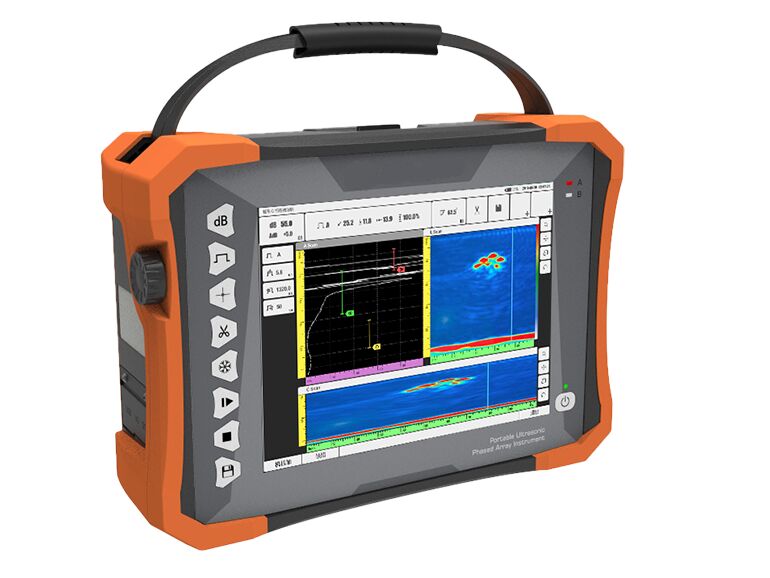

Portable 32:128PR Phased Array Ultrasonic Flaw Detector

Description
Product Name: Phased Array Ultrasonic Flaw Detector PA Mode: 32:128
Display: 10.4-inch Touch Screen Import: 1 IPEX, 4 C5
GPS: Yes Storage: Internal: 64GB; External: USB Flash Disk
Highlight:

Portable phased array ultrasonic flaw detector

,

32:128PR ultrasonic flaw detector

,

Phased array flaw detector with warranty

Portable 32:128PR Phased Array Ultrasonic Flaw Detector



Features:

Inspection Channels

  • 38:128PR Phased Array module
  • Concurrent scanning of TOFD and Phased Array
  • Supports dual-array probes
  • 2-channel TOFD; 2-channel conventional ultrasonic testing

The functionality of the HPA-620 offers a great satisfaction of users’ various demands.



Phased Array Module

  • Conventional butt weld inspection; Conventional butt weld inspection (with concurrent scanning of TOFD and Phased Array)
  • Conventional C-scan inspection for plates
  • Conventional inspection of bolts
  • Conventional corrosion inspection
  • TKY inspection



TOFD module

  • Procedure parameter setup; probe and wedge parameter setup

Users are able to calculate relevant parameters based on the probe and procedure parameters, including: PCS, scanning coverage, bottom coverage, beam included angles.



Display

  • The HPA-620 is fitted with a 10.4-inch industrial-grade TFT screen, with touchable operation, providing optimal displays under strong light and outdoors.



Procedure Design

  • Offering process simulation models, the HPA-620 can also build a model by importing objects’ dimensions via CAD software. Customize users’ dedicated inspection process and provide one-stop service for the full-range of solutions.

Parameter:

Channels
Mode PA mode UT mode TOFD mode
Number 32:128 2 2
Physical Parameter
Display 10.4-inch touch screen
Import 1 IPEX, 4 C5
I/O Ports 2 USB 3.0 (HOST), 1 USB 2.0 (HOST)
DP(DisplayPort) (can transfer to HDMI)
WIFI
LEMO 1B encoder port
TTL I/O port
GPS Yes
Storage Internal: 64GB; External: USB flash disk
Weight 5kg (without battery)
Dimensions 350 mm×250 mm ×130 mm
(L×W×H)
AC 100V~240V 50Hz/60Hz
DC 13.5V
Battery Type Lithium battery
Battery Capacity Double battery, each<100Wh
Battery Life ≥4.5h
Temperature Operating Temperature Range:-10℃~40℃
Storage Temperature Range:-20℃~60℃
Ingress Protection Rating IP65
UT
PRF 25Hz~10kHz
Transmitter Voltage 75V~250V (50Ωload)
Pulse Width 30ns~1000ns, with step as 5ns
Damping 400Ω, 80Ω
Sampling Rate 100MHz
Bandwidth 0.5MHz~20MHz (-3dB)
Gain 0.0dB~110.0dB
Sensitivity Surplus ≥60dB (narrow bandwidth), ≥52dB (broad bandwidth) (2.5P20 transducers, 200mmφ2flat-bottomed holes)
Vertical Linearity Error ≤3%
Horizontal Linearity Error ≤0.1%
Resolution ≥26dB(2.5P20)
Dynamic Range ≥30dB
Filter High-pass, low-pass and multiple narrow band-pass
Rectification RF (TOFD mode), full wave, half wave +, half wave –
Channels 2 channels
Maximum Coverage 10000mm (in steel longitudinal wave)
Gate A/B/G
Gate Star Full range
Gate Width Gate start to full range
Gate Threshold 1~99%
Alarm Sound/Optical
Measurement Spot Front/Peak
TCG 16
Phased Array
Channels 32:128
Max Aperture 32 elements
Max Elements 128 elements
Focus Law ≥1024
Scanning Angle -89°~89°
Calibration Velocity, Delay, TCG,ACG, Encoder
Test Volume 1000mm
Min Angle Increment 0.1°( auto-adjustment)
Sampling Rate 100MHz, 10bit
Rectification Full wave
A-scan Screen Height 800% of screen height (Maximum)
Tunable Analog Gain 80dB
Max PRF 20kHz
Transmitter Voltage 20V~110V(50Ω load)
Pulse Type Bipolar square wave
Pulse Width 30ns~1000ns, step as 5ns
Bandwidth 0.5MHz~20MHz(-3dB)
Filter High-pass, low-pass, multiple narrow band-pass
Triggering Encoder, time-based
Measurement Spot Front/Peak
Readout Amplitude; beam path; horizontal; depth
Measurement Resolution 0.5mm
Scan Mode L/S/C/D –scan
Scan Length ≥15 meters
Scan Speed ≥30mm/s




Scope:

Ÿ Conventional Weld Inspection

Ÿ Phased Array C-scan inspection of Composite materials

Ÿ Inspection of Bolts and Screwed Pipes

Ÿ Inspection of PE joints

Ÿ Solution of Small-diameter Tube Weld Inspection


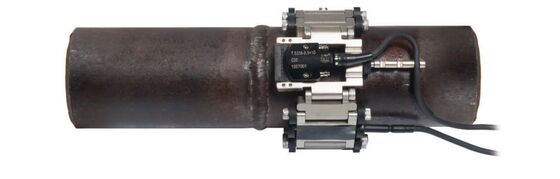

Portable 32:128PR Phased Array Ultrasonic Flaw Detector 0

Portable 32:128PR Phased Array Ultrasonic Flaw Detector 1
