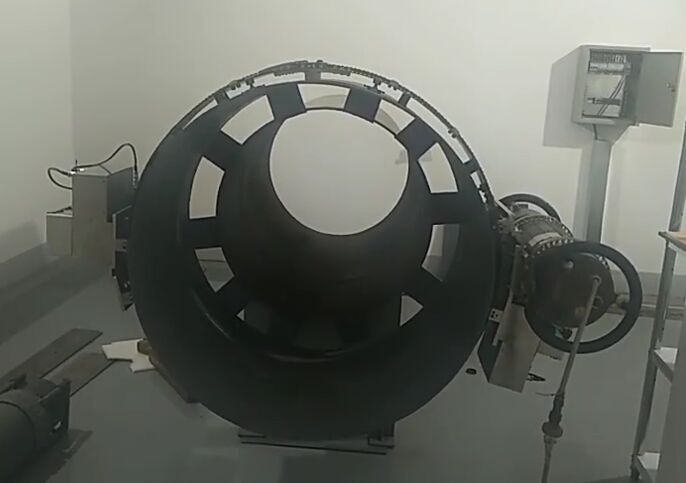

X-ray Digital Imaging Crawling Inspection System

X-ray Digital Imaging Crawling Inspection System
X-ray Digital Imaging Crawling Inspection System X-ray Digital Imaging Crawling Inspection System X-ray Digital Imaging Crawling Inspection System X-ray Digital Imaging Crawling Inspection System X-ray Digital Imaging Crawling Inspection System X-ray Digital Imaging Crawling Inspection System

Large Image :  X-ray Digital Imaging Crawling Inspection System

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: HXPC-DR02
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: in carton
Delivery Time: 7~10 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month

X-ray Digital Imaging Crawling Inspection System

Description
Product Name: X-ray Digital Imaging Crawling Inspection System Walking Speed: ≥ 100mm/s;
Pipes Ranging: From φ510 To φ1219mm Working Time: More Than 8 Hours
Highlight:

X-ray digital imaging crawler

,

Pipeline inspection X-ray system

,

Crawling X-ray imaging equipment

X-ray Digital Imaging Crawling Inspection System



1.0 Equipment Manufacturer: HUATEC Group Corporation

2.0 Equipment Name: X-ray Digital Imaging Inspection System HXPC-DR02

3.0 Specification Model: HXPC-DR02

4.0 Image Transmission Method: Wireless Transmission

5.0 Applicable Pipe Diameter: φ510 - φ1219mm (track selection can be made according to user requirements)

6.0 Main Component Specifications Configuration of the Equipment



6.1 Image Acquisition Device:

Pipeline Outer Wall Crawling Vehicle (Carrying Image Acquisition Board)

Brand: HUATEC

Model: HXPC-PC100

  • Beidou Navigation Positioning;
  • 5G Dual-band Wireless Communication System, Control Distance: 100 meters (open area); HXPC-PC100
  • Walking speed: ≥ 100mm/s;
  • The walking mode adopts track type, ensuring vertical positioning with respect to the weld seam: ± 1mm, positioning accuracy in the walking direction: ± 1mm;
  • After configuration according to user requirements, it can meet the center radiography and dual-wall single-image DR detection requirements for pipes ranging from φ510 to φ1219mm;
  • A quick clamping mechanism is set up for convenient installation and disassembly;
  • A photoelectric sensor (for detecting collision, signal loss, motor or driver damage) protection system is provided;
  • 36V integrated low-temperature lithium battery power supply (compatible with charger), easy to replace, and can work normally at -40℃;
  • Working time: more than 8 hours;
  • Battery level monitoring, the signal loss system self-locks;
  • Power consumption: ≤ 150W;
  • Two motors drive the operation smoothly.
  •

6.2 External wall crawler (carrying X-ray machine)

Equipment brand: HUATEC

Model: HXPC-PC110

  • Walking speed: ≥100mm/s
  • Connect with HXPC-PC100 (pipe outer wall crawler) via auxiliary cable to achieve linkage;
  • The walking mode adopts a track system, ensuring vertical positioning relative to the weld seam: ±1mm, and the positioning accuracy in the walking direction: ±1mm;
  • It can meet the requirements of dual-wall single-image detection - capable of supporting a 300kv high-frequency directional X-ray flaw detector;
  • A quick clamping mechanism is set up for convenient installation and disassembly;
  • The dual motors drive the operation smoothly;
  • A photoelectric sensor (for detecting collision prevention, signal loss, motor or driver damage) protection system is provided;
  • Working hours: More than 8 hours;
  • Power consumption: ≤ 150W;

*It synchronizes with the outer wall climbing vehicle (image acquisition board) to complete the dual-wall single-image DR radiography inspection work.



6.3 Flat-panel detector Brand: HUATEC

Model: HUATEC 750i

  • Sensor: Amorphous Silicon;
  •  Scintillator: CSI (Directly Grown Cadmium Sulfide);
  •  Pixel size: 120 μm;
  •  Imaging area: 244 mm × 307 mm;
  •  Pixel matrix: 1280 × 1024 (2 × 2);
  •  A/D Conversion: 16 bit;
  •  Frame rate: 1.7 fps (1×1);
  •  Energy range: 40 - 320 kV;
  •  Irradiation tolerance: ≥ 1 MRad;
  •  Exposure control: Internal trigger/External trigger;
  •  Communication interface: Gigabit Ethernet;
  •  Operating temperature range: 0°C - 40°C;
  •  Operating humidity range (non-condensing): 10% - 90% RH;
  •  Storage temperature range: -20°C - 55°C;
  •  Form size: 344 × 286 × 20;
  •  Weight: 8 kg;
  •  Input power supply: 100 - 240 V 50/60 Hz AC;
  •  Application: Welding inspection, Casting inspection.



6.4 Central Router

Model: ASUS XD4

  •  Wireless Protocol: Wi-Fi 6;
  •  Main WIFI Transmission Mode: Distributed Transmission;
  •  Supported Features: IPv6 Communication, Mesh;
  •  Wireless Speed: 1800M;
  •  Frequency Bands: 2.4GHz, 5.8GHz Dual-band Wi-Fi;
  •  LAN Output Port: Gigabit Ethernet Port;
  • WAN Input Port: Gigabit Ethernet Port;
  • GPS Module: GPS Signal Acquisition - Beidou, GPS, GLONASS, Galileo;



7.0 Processing Software

Software brand: HUATEC

Software version: Ver 20.21.10.16

It has a one-click detection function. The operator selects the pipe diameter, wall thickness, weld number, flange, compensation, radiographic method, equipment movement direction, effective area, and Beidou coordinates (such as Tokyo, north latitude) based on the preset parameters of the inspected pipeline in the software database.

The relevant parameters are selectable (once selected, they will be printed on the image and cannot be changed). The system automatically calculates the number of frames required to detect the entire weld seam of this pipe based on the preset parameters and stores them. The software has an intervention function for humans, allowing for adjustment of exposure time, frame count, etc., and the number of frames can be adjusted according to the parameter settings.



  • Accurate Beidou positioning (compatible with GPS, GLONASS, and Galileo), printing coordinate parameters (Tokyo, north latitude) on the image;
  •  Automatically calculate the number of samples based on the input pipe diameter size, leaving sufficient overhang margin, and avoiding omissions;
  •  Transmit the collected images wirelessly to the on-site "workstation" for storage;
  •  Before inspection, the operator can preset the window width and window position to make the brightness and contrast of the collected images consistent, and can directly proceed with the assessment after the collection is completed;
  •  Has positive and negative image flipping, image flipping and rotation, image magnification, edge enhancement of image difference, local magnification/restoration of the original image, text and number annotation, image marking;
  •  Has ruler segment measurement;
  •  Has defect measurement (point, line, angle, etc. geometric measurement) and defect marking function;
  •  Has MFT dual filament image quality meter (spatial resolution) automatic measurement and calculation function;
  •  Has real-time display of gray value, automatic calculation and display of average value function;
  •  Has normalized signal-to-noise ratio (SNR) measurement and calculation function;
  •  Has weld seam image stitching function;
  •  The image is in DICONDE format and can be converted into other common formats such as JPG, etc., and supports multiple image storage formats such as JPG, BMP, GIF, PNG, etc.;
  •  Is equipped with relay routing.



8.0 Workstation

Technical parameters of the image acquisition and analysis workstation: Equipment model: HP Z99

Equipment brand: HP

  •  Official Windows 10 operating system Portable workstation
  •  Screen size: 15.0 inches;
  •  11th generation Intel Core i7-11800H processor (8 cores, 16 threads), 2.3GHz base frequency;
  •  RAM: 16 - 32GB (DDR4 2666MHZ);
  •  SATA hard drive: 1TB (M.2 interface quantity 1);
  •  Graphics card: Dedicated graphics card 4G GDDR5 128bit;
  •  Product size: Length 359mm; Width 236mm; Height 23mm
  •  Weight: 2.3kg;
  •  Ports: Audio interface, HDMI interface, USB3.0 interface;
  •  Theoretical battery life: 2 - 5 hours, specific time depends on the usage environment;
  •  Battery capacity: 52.5Wh;
  •  Battery cell number: 3 lithium-ion batteries;
  •  Local network: 10/100/1000Mbps;
  •  Wireless network: Supports Wi-Fi6 wireless protocol;
  •  Sealed chassis design: Protection level certified by P65, can prevent sand, dust and liquids from entering;

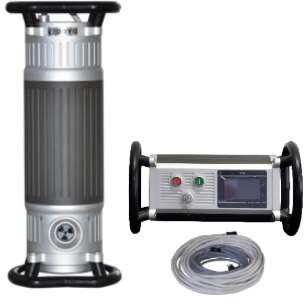

9.0 Radiation Source

Equipped with an interface for installing high-frequency X-ray flaw detection equipment (or a customizable gamma-ray flaw detection machine), different radiation sources can be configured according to requirements.



9.1 Equipment Name: Portable High Frequency Constant Voltage X-ray Inspection Machine and Control System

Model: XXG-H300GP

  •  Operating environmental temperature: -20℃ to 50℃;
  •  Operating environmental humidity: ≤85%;
  •  Input voltage range: AC190v to AC265v;
  •  Input voltage frequency range: 50Hz to 60Hz;
  •  Display: Touch LCD screen with Chinese menu display;
  •  X-ray tube: Metal ceramic tube;
  •  X-ray tube power supply method: Constant voltage;
  •  X-ray tube voltage adjustment range: 120 to 300kV;
  •  Voltage adjustment step: 1kv/step;
  •  X-ray tube current: 0.5 - 3.0mA;
  •  Current adjustment step: 0.1mA/step;
  •  Maximum exposure time setting: 0.1 to 60min (accurate to 0.1min);
  •  Maximum X-ray tube power: 900W;
  •  Working frequency: 100kHz;
  •  Focus size: 3.0mm (in accordance with EN12543 standard);
  •  Penetration thickness: 70mm (focal length 600mm, exposure time 20 minutes, density 2.0D);
  •  Radiation angle: 40°×40°;
  •  Additional filter: 4 mm aluminum equivalent;
  •  Tube head size: Φ246×734 (including end ring);
  •  Tube head weight: 22kg;
  •  Connection cable: 25m;
  •  Power cable: 10m;
  •  Controller size: φ264×458 (including end ring);
  •  Controller weight: 9.6kg;
  •  XXG-H300GP high-frequency machine
  •  Anode cooling method: Forced air cooling.

10.0 High-frequency X-ray Pipeline Crawler

Model: HXPC-100A1

Main Performance Features

  •  High-frequency direct current and high-voltage power supply;
  •  Environmentally friendly, energy-saving and highly efficient;
  •  Constant power output;
  •  Continuous exposure without the need for 1:1 rest;
  •  Clear imaging, high sensitivity;
  •  Simple operation control, easy to learn and use;
  •  Can be used in conjunction with DR for matching;
  •  Can be used for film-based imaging checks alone;
  •  Magnetic command control system;
  •  Precise positioning;
  •  Wide detection pipe diameter range;
  •  Complete protection functions;
  • Four-wheel drive;
  • Compact size and light weight;



Main technical indicators

  • Applicable pipe diameter range: φ710~φ1219 (mm);
  •  Creep speed: 16-18m/min;
  •  Steep slope capacity: ≮40;
  •  Operating environment temperature: -40℃~70℃;
  •  Operating environment humidity: ≮ 90%;
  •  Protective temperature: 80℃;
  •  Working temperature: -25~70℃;
  •  Battery: DC110v / 40Ah (lithium battery);
  •  Motor: 550W (continuous);
  •  Model: HXPC-100A1
  •  Creep distance: ≮8km (round trip distance);
  •  Drive mode: default 2 drive, forced 4 drive;
  •  X-ray generator: φ295×770 (mm);
  •  Weight: 32kg;
  •  Maximum power: 900w;
  •  Kv adjustment range: 50~300kv ±1kv;
  •  mA adjustment range: 0.5~3mA;
  •  Radiation angle: 40°×360°;
  •  Focus: 1×3.0 (mm);
  •  Maximum penetration: 60mm (A3);
  •  Sustained load rate: 100% at 20℃ environment temperature;
  •  Crawler body size: 1.2m×0.38m×0.19m;
  •  Weight: 100kg (vehicle body 80kg + battery 20kg);
  •  Exposure time: 1~300 seconds (continuous adjustable), accurate to 1 second;
  •  Exposure pre-delay: 24 seconds;
  •  Magnetic locator size: 255×113×155 (mm);
  •  Magnetic locator maximum penetration: >34mm;
  •  Magnetic locator weight: 2.8kg;
  •  Positioning error: better than ±5mm.

11.0 Guide Rail:

Specification: φ510 - φ1219mm.

Standard configuration: 1 piece. Additional pieces can be customized upon request.



12.0 Equipment Configuration List:

No. Name Specification Place of Origin Qty
1 Pipeline outer wall crawler (carrying image acquisition board) HXPC-PC100 HUATEC 1 set
2 Pipeline outer wall crawler (carrying X-ray machine) HXPC -PC110 HUATEC 1 set
3 Flat-panel detector CareVision 750C CareVision 1 set
4 Digital image acquisition and processing software Ver 20.21.10.16 HUATEC 1 set
5 Image acquisition workstation HP 99 HP 1 set
6 High-frequency constant-voltage radiation machine XXG-H300GP HUATEC 1 pc
7 High-frequency X-ray pipeline crawler HXPC-100A1 HUATEC 1 pc
8 Guide rail (select one of the available specifications) φ510~φ1219mm HUATEC 1 pc



13.0 Instructions for Related Configurations

Option 1: Double-wall radiography -- XR (equipped with high-frequency X-ray directional machine) + DR (equipped with flat-panel detector) + workstation;

X-ray Digital Imaging Crawling Inspection System 0

Option 2: Central radiography - High-frequency X-ray pipeline crawler + DR (equipped with flat-panel detector) + workstation;

X-ray Digital Imaging Crawling Inspection System 1

Option 3: Single-arm Radiography - High-frequency X-ray directional flaw detector + Flat panel detector + Workstation;

X-ray Digital Imaging Crawling Inspection System 2



14.0 Software and Preview of Photograph Images

X-ray Digital Imaging Crawling Inspection System 3

X-ray Digital Imaging Crawling Inspection System 4

X-ray Digital Imaging Crawling Inspection System 5

X-ray Digital Imaging Crawling Inspection System 6

X-ray Digital Imaging Crawling Inspection System 7

X-ray Digital Imaging Crawling Inspection System 8
