Digital Surface Profile Gauge

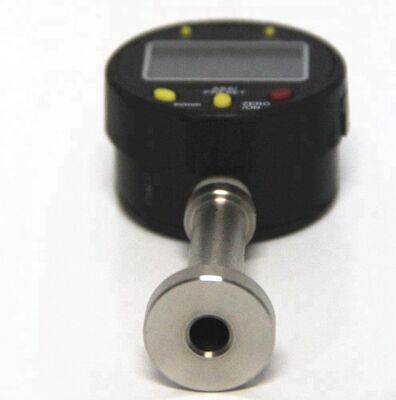

Large Image : Digital Surface Profile Gauge

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO，CE
Model Number:	SRT-5200

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	in carton
Delivery Time:	3~7 days after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 pcs per month

Contact Now

Digital Surface Profile Gauge

Description

Product Name:

Surface Profile Gauge

Measuring Range:

0 - 6500μm M (0 - 0.25")

Resolution:

0.001mm (0.00005")

Power:

1.55V Silver Oxide Battery (SR44)

Highlight:

digital surface profile gauge

portable roughness tester

surface profile measurement tool

Digital Surface Profile Gauge

• Working Temperature: 0 to +40C (32 to 104F)
• Storage Temperature: -10 to +60C (14 to 140F)
• Relative Humidity: <80%
• Accuracy: ±2μm
• Unit: metric/imperial
• Enables quick assessment of surface condition prior to coating
• It works on grit sand shot blasted and saw cut surfaces
• The small size (42 mm diameter) of this surface profile gauge makes it easy to use and easy to balance on the surface
• Its design permits accuracies equivalent to an electronic surface trace
• Gives maximum peak to average valley height
• Available with metric and imperial units.
• This gauge can also measure the depth of pits, cracks, craters and scratches of the outer (and in some cases the inside) surfaces of steel structures, pipes and concrete
• Optional software for data output

Measuring Range	0 - 6500μm m (0 - 0.25")
Resolution	0.001mm (0.00005")
Gauge face diameter	42mm (1.65")
Power	1.55V silver oxide battery (SR44)
Battery Life	8 - 12 months

Digital Surface Profile Gauge 0
