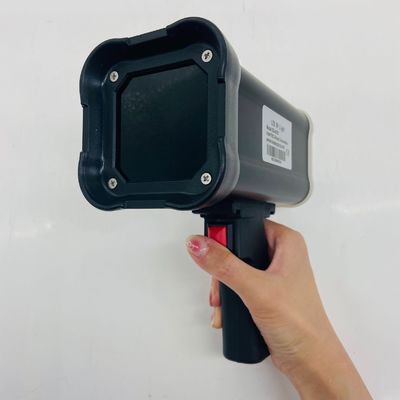

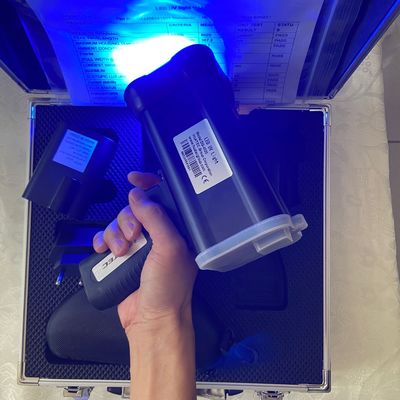

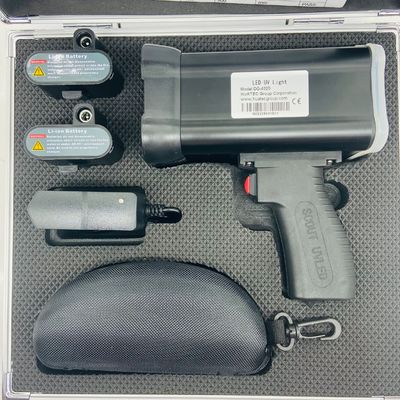

DG-4020 Dual AC DC Portable LED UV light

Large Image : DG-4020 Dual AC DC Portable LED UV light

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATEC
Certification:	ISO
Model Number:	DG-4020

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Carton
Delivery Time:	5-8 working days
Payment Terms:	T/T,Western Union/Paypal
Supply Ability:	500PCS

Contact Now

DG-4020 Dual AC DC Portable LED UV light

Description

Name:

Handheld LED UV Lamp

Application:

UV Light For Magnetic Particle Inspection

Use:

UV Leak Detection Light

Keywords:

Handheld LED UV Lamp

Highlight:

portable LED UV light for testing

dual AC DC UV inspection light

magnetic particle testing UV lamp

DG-4020 Dual AC DC Portable LED UV light

Portable LED UV light Main purpose
Fluorescent Magnetic Particle Inspection (MPI)
Fluorescent Penetrating Inspection (FPI)
Oil contamination, leakage, and fluorescent labeling inspection

Feature

● Strictly comply with ASTM E3022

● UV-B content is 0

● Battery life of 2-3 hours

● Quick Battery Replacement

● Only 560g of battery is included

● Temperature rise of external surface under continuous operation < 8K (8℃)

● It has colour filter glass, and the white light content is less than 20LUX

● Can work with AC directly and also with DC battery

DG-4020 Dual AC DC Portable LED UV light parameter

Project	Parameter / mode
Style	Handheld
UV(Light)-FLUX Indoor temperature 25℃	6000uW/cm²
White light content	≤3LUX
Irradiation area at depth of 380mm: (≥1000uw/cm²)	Φ300mm
Flux error	0-40℃ ±10%
Light distribution characteristics	Central light distribution
Power Supply	AC100- 240V,50/60Hz
Power	UV LED-12VA
Wavelength	Room temperature 25℃, 365nm±3nm (UVA)
Overall dimension	157. 5mm (W) 76mm (D) 177mm (H)
Weight	560g including battery
Battery capacity	2200mA/H 12.6V
Charging time	2-3H
Battery life (cumulative time)	UV LED 2-3H

Dimension: (mm)
