Pencil Hardness Tester Applied the Pencil Scratch Method

Large Image : Pencil Hardness Tester Applied the Pencil Scratch Method

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO,CE
Model Number:	HT-6510P

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in carton
Delivery Time:	3~7 days after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500sets per month

Contact Now

Pencil Hardness Tester Applied the Pencil Scratch Method

Description

Product Name:

Pencil Hardness Tester

Load Weight:

1000g / 750g / 500g

Measurement Angle:

45°

Three Touch Points:

Two Wheels,a Pencil Core

Highlight:

pencil hardness tester for scratch testing

hardness testing machine with pencil method

pencil scratch tester for material hardness

Pencil Hardness Tester Applied the Pencil Scratch Method

Application

Coating hardness is the neccessary measurement for the performance of coatings.This instrument applied the Pencil Scratch Method.It is a fast and economical way to determine the film hardness using th

Principle

The instrument applies mechanical measurement.Keep three point touch the coating(two wheel,a pencil core),and a 45 degree angle between pencil and test surface.Push the instrument sliding,pencil draws the corresponding track in the coating.In the change of different pencil marks,the hardness value of the film can be determined.

Standards

Coating Hardness Pencil Test Method
Standard Test Method for Determination of Coating Hardness by Pencil Test Method
General Method for Preparing Film

Structure Description

Specification

Load Weight	1000g / 750g / 500g
Measurement Angle	45°
Three Touch Points	Two Wheels,a Pencil Core
Scratch Speed	About 1 mm/s

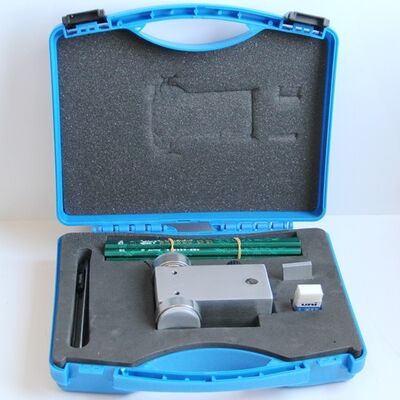

Standard Configuration	Pencil Hardness Tester
	1000g Weight
	750g Weight
	13 Pencils(6B-6H)
	Eraser
	Knife
	Horizontal Pad Block
	Sandpaper

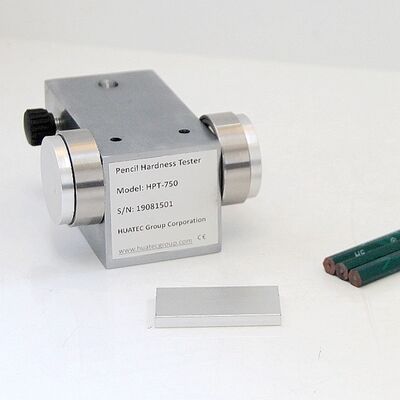

Pencil Hardness Tester Applied the Pencil Scratch Method 1

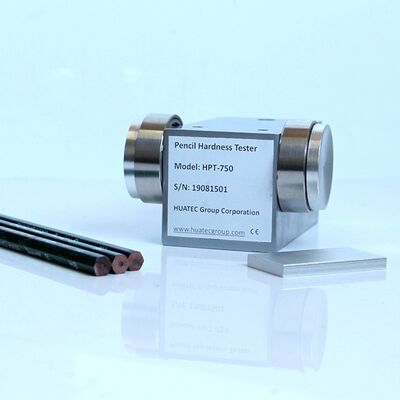

Pencil Hardness Tester Applied the Pencil Scratch Method 2
