High Precision Ceramic Single Crystal Composite Wafer for NDT Sensor Application

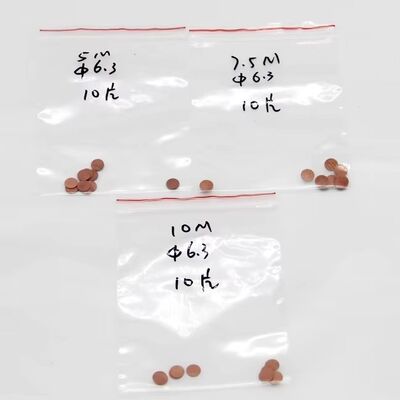

Large Image : High Precision Ceramic Single Crystal Composite Wafer for NDT Sensor Application

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Packaging Details:	Outer carton packaging
Delivery Time:	5-7 working days after receipt of your payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

High Precision Ceramic Single Crystal Composite Wafer for NDT Sensor Application

Description

Composite Method:	Type 1-3 Composite	Base Material Model:	PZ44
Default Tolerance:	±0.05mm	Single Crystal Composite Frequency:	5-10 MHZ
Ceramic Composite Frequency:	0.5-15 MHZ
Highlight:	ceramic single crystal wafer , NDT sensor composite wafer , high precision testing wafer

High Precision Ceramic Single Crystal Composite Wafer for NDT Sensor Application

Performance Features

High sensitivity
High bandwidth
Low acoustic impedance
Good matching with water / human tissue / tested medium
Low ringing time
High signal-to-noise ratio

1	Type 1-3 ceramic composite wafers	Example: Frequency MHz/ Length × width mm
Overall dimensions
Wafer length L(mm)			Default tolerance±0.05mm	Note: The single crystal composite frequency is 5-10 MHZ, and the ceramic composite frequency is 0.5-15 MHZ. Other frequencies require technical confirmation
Wafer width W(mm)			Default tolerance±0.05mm
Wafer thickness H(mm)/ wafer frequency(MHz)			Default tolerance for thickness±0.005mm
pitch(mm)	(The size of the small crystal column is added with a knife slit)		It would be best if the customer could provide it. Some Osos have default Settings
Knife slit(mm)
Performance parameters
Composite method	Type 1-3 composite
Base material model	PZ44
Process requirements
Does the electrode need to be edge-wrapped	When edge banding is required, chamfering will be done by default. The drawings provided by the customer are attached
Is an isolation slot needed	When an isolation tank is required, the customer shall provide the drawings (including dimensions and polarity) as attached
Coating requirements	PVD:Gilding
Whether polarization is needed	Default polarization
Whether the positive and negative poles are marked	By default, the red marker dot is the positive pole
Other special requirements	Please describe it in detail if necessary
Test report
ULSO LOGO report	√
Logo-free report
Packaging requirements
Independent packaging	√
Not packaged independently

Application

Ultrasonic flaw detection NDT probe
Medical ultrasound transducer
Underwater acoustic transducer
Phased array probe
High frequency ultrasonic sensor
