Piezoelectric Ceramic Single Crystal Composite Wafer for High Frequency Ultrasonic Transducer

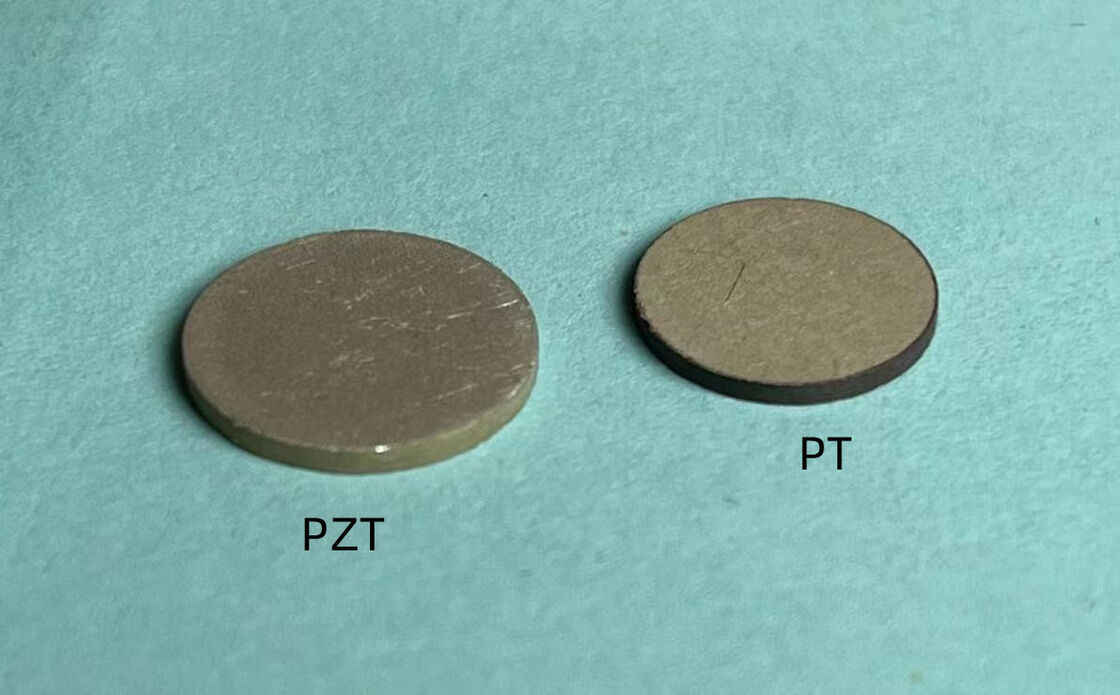

Large Image : Piezoelectric Ceramic Single Crystal Composite Wafer for High Frequency Ultrasonic Transducer

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Packaging Details:	Outer carton packaging
Delivery Time:	5-7 working days after receipt of your payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

Piezoelectric Ceramic Single Crystal Composite Wafer for High Frequency Ultrasonic Transducer

Description

Composite Method:	Type 1-3 Composite	Base Material Model:	PZ44
Default Tolerance:	±0.05mm	Single Crystal Composite Frequency:	5-10 MHZ
Ceramic Composite Frequency:	0.5-15 MHZ
Highlight:	Piezoelectric ceramic wafer for ultrasonic transducer , High frequency single crystal composite wafer , Ultrasonic transducer ceramic wafer NDT

Piezoelectric Ceramic Single Crystal Composite Wafer for High Frequency Ultrasonic Transducer

Performance Features

High sensitivity
High bandwidth
Low acoustic impedance
Good matching with water / human tissue / tested medium
Low ringing time
High signal-to-noise ratio

1	Type 1-3 ceramic composite wafers	Example: Frequency MHz/ Length × width mm
Overall dimensions
Wafer length L(mm)			Default tolerance±0.05mm	Note: The single crystal composite frequency is 5-10 MHZ, and the ceramic composite frequency is 0.5-15 MHZ. Other frequencies require technical confirmation
Wafer width W(mm)			Default tolerance±0.05mm
Wafer thickness H(mm)/ wafer frequency(MHz)			Default tolerance for thickness±0.005mm
pitch(mm)	(The size of the small crystal column is added with a knife slit)		It would be best if the customer could provide it. Some Osos have default Settings
Knife slit(mm)
Performance parameters
Composite method	Type 1-3 composite
Base material model	PZ44
Process requirements
Does the electrode need to be edge-wrapped	When edge banding is required, chamfering will be done by default. The drawings provided by the customer are attached
Is an isolation slot needed	When an isolation tank is required, the customer shall provide the drawings (including dimensions and polarity) as attached
Coating requirements	PVD:Gilding
Whether polarization is needed	Default polarization
Whether the positive and negative poles are marked	By default, the red marker dot is the positive pole
Other special requirements	Please describe it in detail if necessary
Test report
ULSO LOGO report	√
Logo-free report
Packaging requirements
Independent packaging	√
Not packaged independently

Application

Ultrasonic flaw detection NDT probe
Medical ultrasound transducer
Underwater acoustic transducer
Phased array probe
High frequency ultrasonic sensor

Tag:

Contact Person: Ms. Shifen Yuan

Tel: 8610 82921131,8618610328618

Fax: 86-10-82916893

Other Products

HG-904A4 4-Channel Portable Vibration Analyzer 24Bit AD Synchronous Acquisition Bearing Fault Diagnosis

AD conversion: 24-bit AD sampling

Tachometer range: 120—12000rpm

Measuring accuracy of vibration: ±5%

Storage capacity: 16G

HXC-16B X-ray Tube 0.8mm Focal Spot 160KV 500W for Security Scanner & Flaw Detector

Tube voltage (kVp): 160KV

Filament characteristic(v): I fmax=4.5A，Uf=5±1

target angle: 25°

Maximum continuous heat dissipation (w): 500

HFE-100 Portable Ferrite Content Tester Fe% / FN WRC Dual Unit Weld Tester for Austenitic & Duplex Steel Welding

Range: 0.1~80%Fe , ( 0.1~110)WRC-number

Precision: ±2%(raneg0.1~30%Fe), ±3%(raneg30~80% Fe)

Operating temperature: 5 ~ 40℃

Batteries: 9v 6F22

HXH20 High-Speed Rotating Anode Medical X-ray Tube 150kV for Diagnostic Imaging

Tube voltage (kVp): 150KV

anode speed (r/min): 2700(50Hz) 3200(60Hz) 9700(180Hz)

Inherent filtration(mmAl) （75kV）: ≥1.5

angle: 12°

H33 Series 160kV High Power X-ray Glass Tube for Airport Baggage Scanner Security System

Tube voltage (kVp): 160KV

Radiator type optional: Φ52mm×39mm、Φ65mm×39mm

use: airport x ray safe examination inspection system

Size: Glass: Φ68mm、Total length:190mm

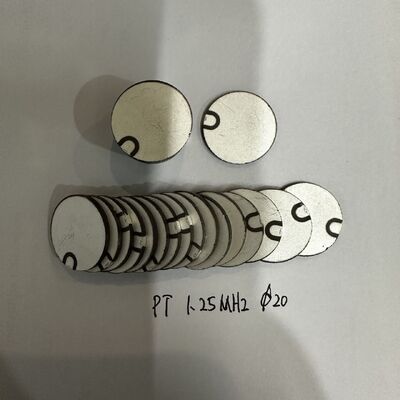

Piezoelectric Ceramic Single Crystal Composite Wafer for High Frequency Ultrasonic Transducer
