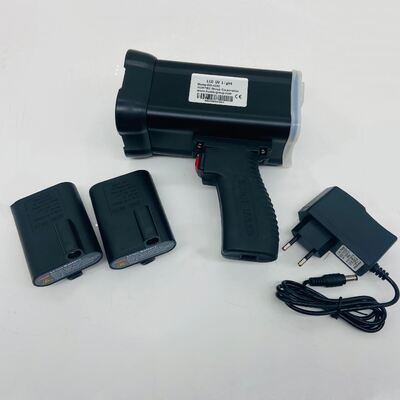

Dual AC Directly and DC Battery Operation Handheld LED-UV Lamp

Large Image : Dual AC Directly and DC Battery Operation Handheld LED-UV Lamp

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATEC
Certification:	ISO,CE
Model Number:	DG-4020
Document:	DG-4020 Dual AC&DC operatio...mp.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	in Carton box
Delivery Time:	5-8 days after payment
Payment Terms:	T/T,Western Union/Paypal,L/C,Western Union
Supply Ability:	100PCS per month

Contact Now

Dual AC Directly and DC Battery Operation Handheld LED-UV Lamp

Description

Name:

Handheld LED UV Lamp

Application:

UV Light For Magnetic Particle Inspection

Use:

UV Leak Detection Light

Keywords:

Handheld LED UV Lamp

Highlight:

handheld LED-UV lamp for magnetic testing

dual AC DC battery UV lamp

portable LED-UV inspection light

Dual AC Directly and DC Battery Operation Handheld LED-UV Lamp

Main purpose
Fluorescent Magnetic Particle Inspection (MPI)
Fluorescent Penetrating Inspection (FPI)
Oil contamination, leakage, and fluorescent labeling inspection

Feature

● Strictly comply with ASTM E3022

● UV-B content is 0

● Battery life of 2-3 hours

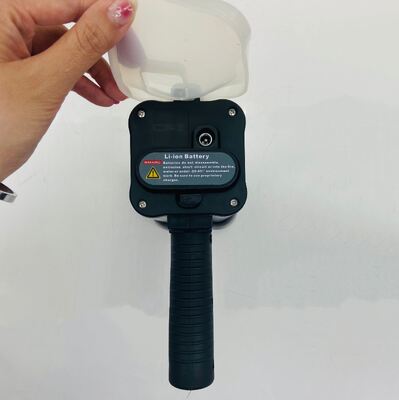

● Quick Battery Replacement

● Only 560g of battery is included

● Temperature rise of external surface under continuous operation < 8K (8℃)

● It has colour filter glass, and the white light content is less than 20LUX

● Can work with AC directly and also with DC battery

DG-4020 Dual AC DC Operation Handheld LED UV Lamp parameter

Project	Parameter / mode
Style	Handheld
UV(Light)-FLUX Indoor temperature 25℃	6000uW/cm²
White light content	≤3LUX
Irradiation area at depth of 380mm: (≥1000uw/cm²)	Φ300mm
Flux error	0-40℃ ±10%
Light distribution characteristics	Central light distribution
Power Supply	AC100- 240V,50/60Hz
Power	UV LED-12VA
Wavelength	Room temperature 25℃, 365nm±3nm (UVA)
Overall dimension	157. 5mm (W) 76mm (D) 177mm (H)
Weight	560g including battery
Battery capacity	2200mA/H 12.6V
Charging time	2-3H
Battery life (cumulative time)	UV LED 2-3H

Dimension: (mm)
