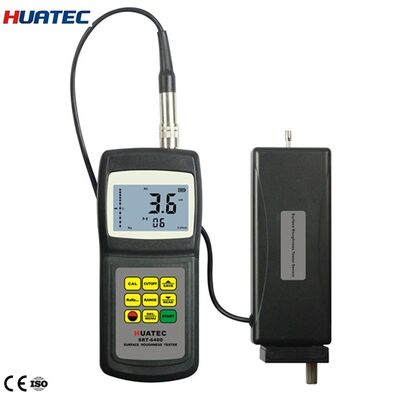

Surface Roughness Tester Separate Probe Ra Rz Rq Rt Ra/Rq:0.005-16um Remote Control Probe

Surface Roughness Tester Separate Probe Ra Rz Rq Rt Ra/Rq:0.005-16um Remote Control Probe

Features:
* Surface roughness tester SRT6400 is compatible with four standards of site to measure surface roughness of various machinery-processed parts, calculate corresponding and clearly display all measurement parameters.
* When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism by the separate probe.
* This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier.
* The exclusive DSP processes and calculates and then outputs the measurement results on LCD.
* Multiple parameter measurement: Ra, Rz, Rq, Rt
* Highly sophisticated inductance sensor
* Four wave filtering methods : RC, PC-RC, GAUSS and D-P
* Built-in lithium ion rechargeable battery and control circuit with high capacity
* Small in size, light in weight and easy to use
* Can communicate with PC computer for statistics, printing and analyzing by the optional cable and the software for RS232C or USB interface.
*Manual or automatic shut down. The tester can be switched off by pressing the Power key at any time. On the other hand, the tester will power itself off about 5 minutes after the last key operation.
*The tester can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
*Metric /Imperial Conversion

Specifications

Standard Accessories:
   Carrying case.................1pc
   Main unit.........................1pc
   Standard Sensor.............1pc
   Standard Sample Plate...1pc
   Power Adapter................1pc
 Operation Manual...........1pc                     ,
   Screwdriver.....................1pc
   Adjustable Leg................1pc
   Sensor Protector.............1pc


Optional Accessories:
1. Cable and Software for RS-232/USB
2. Extension Rod
3. Groove stylus
4. Curvature Probe
5. Measurement Stand
6. Bluetooth interface
