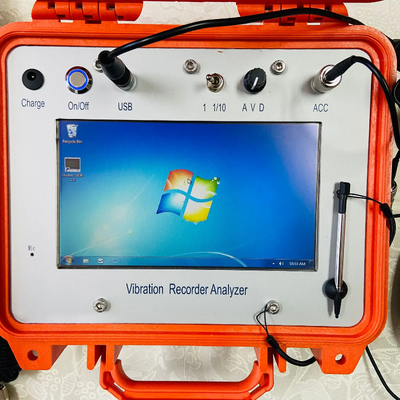

HG-S936L-1 Vibration Measurement Recorder Acceleration Velocity Displacement Vibration Analyzer

HG-S936L-1 Vibration Measurement Recorder Acceleration Velocity Displacement Vibration

Analyzer

Basic principle:

Through the piezoelectric acceleration sensor, the acceleration, velocity, displacement and other parameters of the recorded vibration can be measured seamlessly and continuously, and long waveform storage (>10 minutes) can be realized. Choose a segment of the recording for signal analysis: amplitude spectrum, power spectrum, Logarithmic spectrum, cepstrum, spectrum refinement, time domain diagnosis, statistical characteristic value analysis, etc., and can automatically generate WORD format test reports.

Technical index:

Features:

*Long-time seamless recording

*Sensor: Very High sensitivity Accelerometer

*Raw Waveform Recording

*Non-Stable Vibration Analysis

*Natural Frequency Analysis

*Startup-Shutdown Recording & Analysis

*Spectrum Analysis Tools: Amplitude-Spectrum, Power-Spectrum, Logarithm-spectrum, Cepstrum

*Automatic Report Generation: WORD Format

• Long waveform storage (>10 minutes), select a segment in the record for signal analysis

• USB2.0 full-speed bus transmission

• Spectrum analysis resolution: 400 lines, 3200 lines after 8 times of refinement

• 8th order elliptic anti-aliasing filter

• Powered by the host USB, no additional power supply required

• Single channel

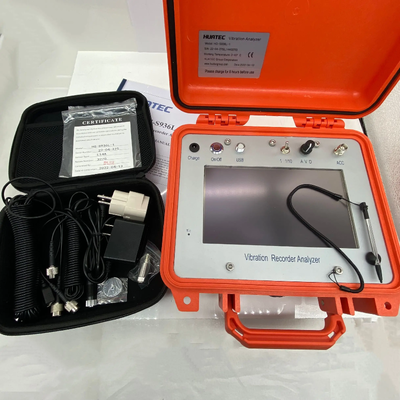

Standard accessories:

1 laptop,

1 collection box

1 cable

1 low-frequency sensor

1 magnetic base

1 charger

1 instrument box

1 calibration certificate
