HDTS-3350PC Digital Stroboscope Non-contact Rotation Speed Measuring Strobe Meter

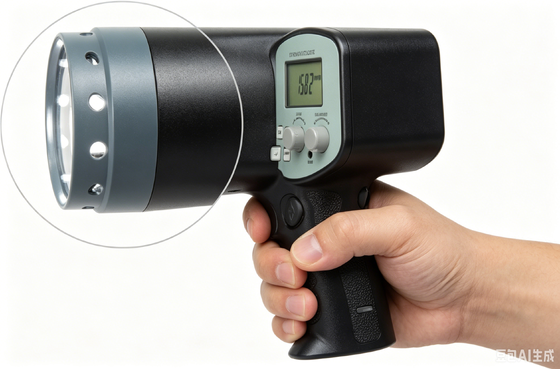

Large Image : HDTS-3350PC Digital Stroboscope Non-contact Rotation Speed Measuring Strobe Meter

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HDTS-3350PC

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Packaging Details:	Outer carton packaging
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

HDTS-3350PC Digital Stroboscope Non-contact Rotation Speed Measuring Strobe Meter

Description

Range:	50~20,000 FPM	Resolution:	0.1 FPM(50~999.9 FPM) 1 FPM(Over 1000 FPM)
Accuracy:	±(0.05%n+1d)	Sampling Time:	0.3 Seconds
Flash Tube Life:	100 Million Times
Highlight:	digital stroboscope rotation speed meter , non-contact stroboscope measuring tool , strobe meter with warranty

HDTS-3350PC Digital Stroboscope Non-contact Rotation Speed Measuring Strobe Meter

The Stroboscope is capable to provide image of single, two or multiple stillness for the vibration object, rapidly rolling object, can also use to observe the movement tracks.

Display	LCD
Range	HDTS-3350PC	50~20,000 FPM
Resolution	0.1 FPM(50~999.9 FPM)
	1 FPM(Over 1000 FPM)
Accuracy	±(0.05%n+1d)
Sampling Time	0.3 Seconds
Internal / External Triggering Conversion
External Trigger Level	3~24 V
H/L Range	Flashing Light is much Brighter at
	Low Range than at High Range
With x2 , ÷2 for Fast Check
Flash Tube Life	100 Million Times
Operating Conditions	Temperature:0~40ºC
	Humidity:<85%RH
Power Supply	AC 220V(Optional AV 110V)
Power Consumption	About 50W
Dimensions	215x85x180 mm
Weight	About 1000 g
Standard Accessories	Main Unit
	Carrying Case(B08)
	Operation Manual
Optional Accessories	Square Flashing Tube

　Features

* Digital display gives exact reading with no guessing or errors; Wide measuring range and high resolution.
* Automatic stop flashing to save electricity and improve flash tube lifetime.
* Internal / external triggering fast conversion; x2 and ÷2 button for fast adjustment.
* Use photoelectric signal while external triggering, achieve automatic tracking function of the pattern.
* Use microcomputer technology, emerging technologies, anti-jamming technique and other advanced technology, it can measure the rotative velocity without contacting the object.

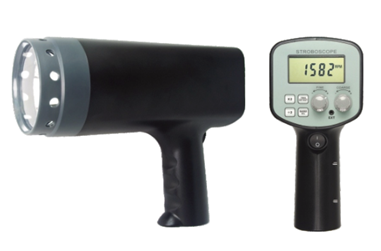

HDTS-3350PC Digital Stroboscope Non-contact Rotation Speed Measuring Strobe Meter 0

HDTS-3350PC Digital Stroboscope Non-contact Rotation Speed Measuring Strobe Meter 1
