HEF-39RFT EDDY CURRENT TESTER

HEF-39RFT EDDY CURRENT TESTER
HEF-39RFT EDDY CURRENT TESTER HEF-39RFT EDDY CURRENT TESTER HEF-39RFT EDDY CURRENT TESTER HEF-39RFT EDDY CURRENT TESTER HEF-39RFT EDDY CURRENT TESTER

Large Image :  HEF-39RFT EDDY CURRENT TESTER

Product Details:
Place of Origin: China
Brand Name: HUATEC
Model Number: HEF-39RFT
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Contact Now

HEF-39RFT EDDY CURRENT TESTER

Description
4 Separate Eddy Current Frequencies: 4 Separate Eddy Current Frequencies Frequency Range From 1 Hz To 4 MHz: (remote Filed Freq: 1 Hz～250 KHz Adjustable)
8 Independently-selectable Channels: 8 Independently-selectable Channels Four Differential Channels And Four Absolute Channels: Four Differential Channels And Four Absolute Channels
Highlight:

eddy current tester HEF-39RFT

,

non-destructive testing equipment with warranty

,

eddy current flaw detector HEF-39RFT

HEF-39RFT EDDY CURRENT TESTER

HEF-39RFT eddy current instrument with remote-field technology is a new generation of eddy current instrument. With full-digital, multi-frequency and multi-channel, HEF-39RFT is a versatile system offering a comprehensive array of electromagnetic testing techniques within a single instrument. HEF-39RFT can be used to inspect flaws of non-ferromagnetic and ferromagnetic tubing materials, such as pitting, corrosion, vibrations wear, steam erosion and cracking.

Combined all the advanced testing capabilities of HEF-39 with a highly sensitive remote field technology option, HEF-39RFT is an ideal solution for a broad range of tubing applications in the petroleum chemical and power generation industries, where inspection of both nonferromagnetic and ferromagnetic materials is required. In contrast to other ferromagnetic tubing inspection, HEF-39RFT provides not only a more complete --100% coverage with inner and outer surface discontinuity detection, but also thickness measurement -- in a fraction of the time.

Frequency & Channels
  • 4 separate eddy current frequencies
  • Frequency range from 1 Hz to 4 MHz
  • (remote filed freq: 1 Hz～250 KHz adjustable)
  • 8 independently-selectable channels
  • Four differential channels and Four absolute channels
  • Three signal mixing units
Gain Adjustment
  • Adjustable gain from 0 to 90 dB in 0.5 dB steps.
Phase
  • 360-degrees phase shift in steps of 1-degree, the impedance plane can be rotated during modification for erase of operation.
Colored Real-Time Display

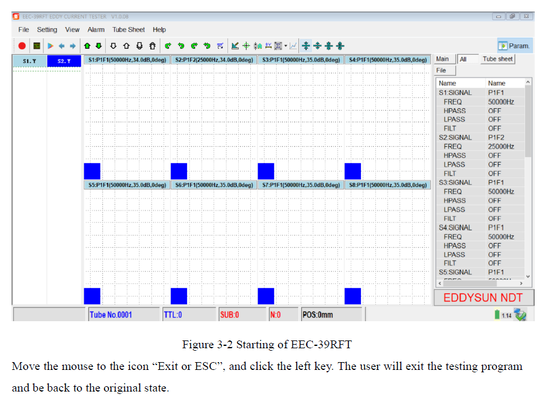

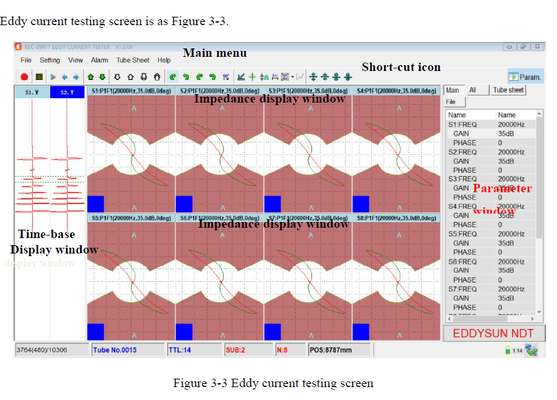

  • Colored real-time display of x-y impedance plane and/or strip chart signals.
  • A-scan and C-scan displays
  • Display 3-stimulate x-y signals, 2 built-in strip chart signals
  • Delay erase display mode
  • Independent vertical to horizontal display scaling ratio adjustable from 0.1 to 10
  • All instrument settings are shown on the display.
Alarm
  • Audio, visual and logic output alarms
  • Special alarm areas adjustable from 1 to 8
  • Alarm area is provided for each display window of impedance plane
  • Alarm area size and positioning are independently adjustable
  • Alarm can be set to trigger either inside or outside the gated area
Filter & Others
  • Digital filters
  • Fast electronic balancing
  • Adjustable sample rate.
Inputs
  • Four connectors are provided for differential, absolute and reflection type probes. The connectors are designed to operate with most manufacturers’ probes.
  • Other connects are provided for rotating probe.
Outputs
  • Eight analog outputs
  • Print data to Epson series
Memory Store & Recall
  • Stores test setups
  • Stores screen images
Easy to learn & Easy To Operate
  • All parameter settings and configurations are done from the keyboard and can be individually stored and retrieved by hard or flexible disk.
  • Friendly controls are directly accessible
