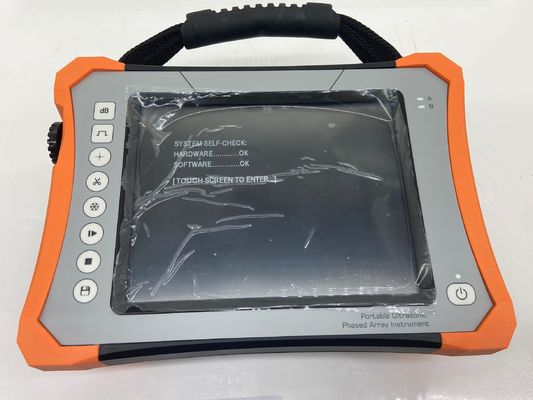

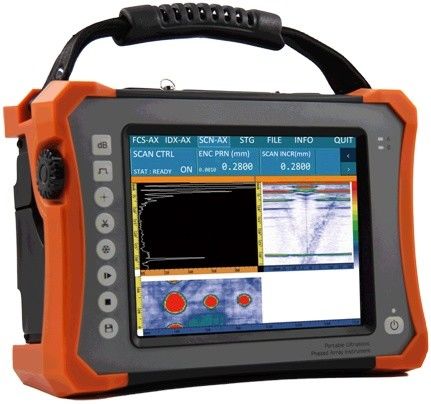

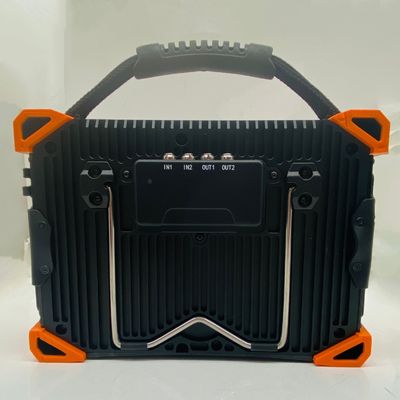

HPA-500 Portable Phased Array Ultrasonic Flaw Detector

HPA-500 Portable Phased Array Ultrasonic Flaw Detector
HPA-500 Portable Phased Array Ultrasonic Flaw Detector HPA-500 Portable Phased Array Ultrasonic Flaw Detector HPA-500 Portable Phased Array Ultrasonic Flaw Detector

Large Image :  HPA-500 Portable Phased Array Ultrasonic Flaw Detector

Product Details:
Place of Origin: China
Brand Name: HUATEC
Model Number: HPA-500
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Contact Now

HPA-500 Portable Phased Array Ultrasonic Flaw Detector

Description
Display: 11-inch 800X600 TFT Color Display Transducer Ports: 160-pin PA Transducer Port; Lemo-00 Conventional Transducer Port, For Either T-R Or T&R
Memory: In-Built: 16G RAM+4GB FLASH ;SD Card (max To 32G); External: USB Drive Power Supply: AC：100～240V，50～60Hz；DC：12V
Highlight:

portable phased array flaw detector

,

ultrasonic flaw detector with warranty

,

HPA-500 nondestructive testing equipment

HPA-500 Portable Phased Array Ultrasonic Flaw Detector
Introduction

HPA-500 is a portable 64-CH phased array ultrasonic flaw detector originally developed by HUATEC. It is water-proof and oil-proof , fan-free and with touch screen. Whole-process data logging, innovative phased array probes and inspection methods being the advantages, this model guarantees superior performance and support, which makes it among the best of its kind for high C/P ratio.

Specification
Channel Configuration
Mode PA UT TOFD
Channel 16:64 2 2
Physical Specification
Display 11-inch 800X600 TFT color display
Transducer Ports 160-pin PA transducer port; Lemo-00 conventional transducer Port, for either T-R or T&R
I/O Ports USB2.0 Port: 2(qty)
HDMI; encoder
LAN(Gigabit-NIC);
WIFI
I/O (commissioning)
2D Encoder
Memory In-Built: 16G RAM+4GB FLASH ;SD card (max to 32G);
External: USB drive
Weight 3.5Kg (with 1 battery)
Dimension 284mm*202mm*95mm
Power Supply AC:100～240V,50～60Hz；DC:12V
Charging (battery) within or individually
Battery Life 6 Hours
Working Power 24W
Language English
Temperature Conditions Ambiance:-20℃～50℃
Storage:-20℃～60℃
IP IP54
Performance Specification
Mode PA UT TOFD
PRF 50Hz～10kHz 50Hz～5kHz 50Hz～5kHz
Voltage Bipolar, ±45～±100V, with 5V per step Negative Square Wave, -75V～-250V, with 25V per step Negative Square Wave, -75V～-250V, with 25V per step
Pulse Width 20ns～800ns, with 5ns per step 20～800ns, with 5ns per step 20～800ns, with 5ns per step
Damping 50Ω 80Ω / 400Ω 80Ω / 400Ω
Sampling Rate 125MHz 200MHz 200MHz
Delay Precision 2.5ns N/A N/A
Rx Delay 0～40us N/A N/A
Bandwidth 0.5MHz～19MHz 0.5MHz～15MHz 0.5MHz～15MHz
Gain 0.0～80dB 0.0～110.0dB 0.0～110.0dB
Filter 0.5-9.6MHz,2.5-12.9MHz,3.8-19MHz Optional broadband, narrowband broadband, narrowband
Rectification FW FW RF
Reject 0~80% 0~80% 0~80%
Scan Mode A/L/S/C A A/D
Triggering Encoder N/A Encoder
Scan Line Max 128 N/A N/A
Skew L-scan:-89°～+89°
S-scan:-89°～+89°		 N/A N/A
Smart-Cal Velocity/Delay/ACG/TCG/Encoder DAC/DGS Delay/X-Value/PCS/Wave/Encoder
Range 0.0～1000mm, min 1mm 0.0～2000mm 0.0～2000mm
Displaying Delay (max) 1000mm 2000mm 2000mm
Pulse Shift (max) N/A 2000mm 2000mm
Unit mm mm mm
Gate A/B A/B A/B
Gate Start Available within the range Available within the range Available within the range
Gate Width Available within the range Available within the range Available within the range
Gate Threshold 0-100% 5-95% 0-100%
Alarm Signal Buzzer / LED Buzzer / LED Buzzer / LED
Spotting Crest / Flank Crest / Flank Crest / Flank
Readout Amp/Path/Horizontal/Depth Amp/Path/Horizontal/Depth Amp/Path/Horizontal/Depth
Resolution 0.5mm 0.1mm 0.1mm
Application
  • Common or special welded seam of steel structure, utility boiler, pressure vessel, pipeline, nuclear power infrastructures, watercraft, oil tank, ethylene tube, etc.
  • Railway welded seams, locomotive wheel sets and axles.
  • Aluminum alloy FSW butts and bonding of composites used in aerospace industry.
  • Blades and bolts used in power industry.
  • Cases when there’s not enough space for movement whilst inspection; Cases when conventional UT is preferred.
Packing Details
  • HPA-500 1pc
  • PAUT Probe 1pc
  • PAUT Probe Wedge 2pcs
  • UT Normal Probe 2.5P20 1pc
  • UT Angle Probe 2.5P13*13 60°1pc
  • UT Probe Cable LEMO 00-BNC 2pcs
  • Li-ion battery 1pc
  • Charger 1pc
  • Power converter 1pc
  • HDMI Cable 1pc
  • Crossover Cable 1pc
  • Allen Wrench (S2.5) 1pc
  • Instrument Suitcase 1pc
  • USB Drive Disk (8G) 1pc
  • User Manual 1pc
  • Certificate 1pc
Optional accessories
  • TOFD Probe 5MHz 6mm/7.5MHz 3mm/
  • TOFD Wedge 60°w/anti-wear nail , 70°w/anti-wear nail
  • TOFD Wedge R100 curve surface R100/0°
  • TOFD Probe Cable LEMO 00-LEMO 00
  • Non-Parallel TOFD Scanner
  • Scanner for Phased Array
  • Encoder Cable Extension
  • Other Allen Wrench for TOFD
  • Other probes/wedge for Phased Array and TOFD
  • Calibration block
Main Function
  • File & Entry Management System for Flexible Bridging between setting (Focal Law & Model), Calibration and Inspection
  • Modular Configuration: L-Scan, S-Scan, L-C-Scan, S-C-Scan, Butt-Weld, CrankShaft , Pipeline, TOFD, UT(Conventional),
  • 3D Simulation Model
  • Image analysis
  • Natural Structure of Heat Dissipation
  • Dynamic Depth Focusing (DDF)
  • Smooth Filtering
  • Touch Screen
  • ACG Calibration
  • TCG Calibration
