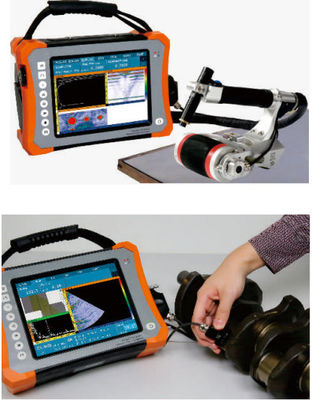

TFM Phased Array Ultrasonic Flaw Detector HPA-620PRT with 32:128PR Module, 10.4-inch Touch Screen, and Concurrent TOFD Scanning

TFM Phased Array Ultrasonic Flaw Detector HPA-620PRT with 32:128PR Module, 10.4-inch Touch Screen, and Concurrent TOFD Scanning
TFM Phased Array Ultrasonic Flaw Detector HPA-620PRT with 32:128PR Module, 10.4-inch Touch Screen, and Concurrent TOFD Scanning TFM Phased Array Ultrasonic Flaw Detector HPA-620PRT with 32:128PR Module, 10.4-inch Touch Screen, and Concurrent TOFD Scanning

Large Image :  TFM Phased Array Ultrasonic Flaw Detector HPA-620PRT with 32:128PR Module, 10.4-inch Touch Screen, and Concurrent TOFD Scanning

Product Details:
Place of Origin: China
Brand Name: HUATEC
Model Number: HPA-620PRT
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Contact Now

TFM Phased Array Ultrasonic Flaw Detector HPA-620PRT with 32:128PR Module, 10.4-inch Touch Screen, and Concurrent TOFD Scanning

Description
AC Voltage: 100V~240V 50Hz/60Hz

TFM Phased Array Ultrasonic Flaw Detector HPA-620PRT
Product Overview

The HUATEC HPA-620PRT is a newly developed portable 32:128PR Phased Array flaw detector equipped with conventional ultrasonic inspection, TOFD, conventional Phased Array, and TFM imaging modules. This advanced intelligent system supports concurrent scanning of TOFD and Phased Array, dual-array probes, and features a waterproof touch screen with comprehensive testing data recording capabilities.

Key Features
  • 32:128PR Phased Array module with TFM imaging capability
  • Concurrent scanning of TOFD and Phased Array technologies
  • Support for dual-array probes
  • 2-channel TOFD and 2-channel conventional ultrasonic testing
  • 10.4-inch industrial-grade TFT touch screen
  • Water and oil-proof construction with IP65 rating
  • Full-course testing data recording
Technical Specifications
Channels PA/TFM Mode: 32:128
UT Mode: 2 channels
TOFD Mode: 2 channels
Physical Parameters Display: 10.4-inch touch screen
Weight: 5kg (without battery)
Dimensions: 350mm × 250mm × 130mm (L×W×H)
Operating Temperature: -10℃ to 40℃
IP Rating: IP65
Connectivity Import: 1 IPEX, 4 C5
USB Ports: 2 × USB 3.0 (HOST), 1 × USB 2.0 (HOST)
DisplayPort: Convertible to HDMI
Wireless: WIFI, GPS
Other: LEMO 1B encoder port, TTL I/O port
Power & Battery AC Input: 100V-240V 50Hz/60Hz
DC Input: 13.5V
Battery Type: Dual lithium battery system
Battery Life: ≥4.5 hours
UT Specifications PRF: 25Hz-10kHz
Transmitter Voltage: 75V-250V
Sampling Rate: 100MHz
Gain Range: 0.0dB-110.0dB
Dynamic Range: ≥30dB
Phased Array/TFM Max Aperture: 32 elements
Max Elements: 128 elements
Focus Law: ≥1024
Scanning Angle: -89° to 89°
TFM Imaging: Live 2D with up to 1,000,000 focus points
3D Reconstruction: Supported
Inspection Capabilities
  • Longitudinal and transverse wave TFM inspection
  • Butt weld inspection (TFM and conventional)
  • C-scan TFM and conventional inspection for plates
  • Bolt and screwed pipe inspection
  • Corrosion inspection (TFM and conventional)
  • TKY joint inspection
  • Procedure design with CAD integration
Application Scope
  • Conventional Weld Inspection
  • Phased Array C-scan inspection of Composite Materials
  • Inspection of Bolts and Screwed Pipes
  • Inspection of PE Joints
  • Small-diameter Tube Weld Inspection Solutions
