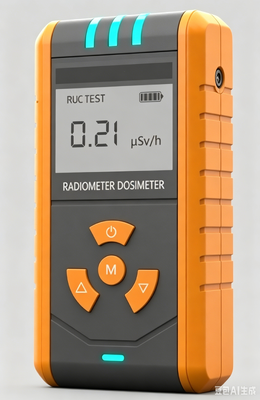

FJ-6102G10 Handheld X γ β Radiation Detector GM Counter Tube Sound Vibration Alarm Personal Dosimeter
FJ-6102G10 is a portable X-γradiation measuring instrument. Upgraded on the basis of the original product. Build in a high sensitive gamma beta Geiger-Muller counter. With fast response, wide measuring range characteristics. Using for measuring X,γand high-energy βradiation. It’s a multipurpose radiation dose rate measuring instrument.
Specification:
| Measurement ranges |
- dose equivalent rate (137Cs): 0.01 μSv/h～5000μSv/h, (Optional range up to1mSv/h).
- Dose equivalent (137Cs): 0.00uSv~9999Sv.
|
| Energy ranges of measurement |
40Kev～3.0Mev
|
| Relative errors of energy dependence(137Cs) |
- ≤±25%
|
| Basic relative errors |
≤±10% (10uSv/h,137Cs) |
| Time of alarm dependence |
- ≤5 sec
|
| Display unit |
EDR :(µSv/h,mSv/h,Sv/h )
ED:(µSv,mSV,Sv)
- Count rate:CPS
|
| Power supply mode |
One 3.7V,900mA rechargeable lithium battery
|
| Dimensions and weight |
(102x62x28)mm,100g |
| Operating temperature range |
- －30℃---＋50℃
|
| Humidity range |
≤95% (40±2)℃ |
Purpose for use
- Measurement of X-γ radiation ambient dose equivalent rate;
- Measurement of gamma radiation ambient dose equivalent;
Applications:
- Nuclear facilities around environmental radiation detection
- The soil surface radiation pollution detection
- Agricultural radiation pollution detection
- Ore, building materials radioactive detection
- Personal dose monitoring alarm
- Industrial X, gamma NDT radiation detection
- Radiation medical treatment place radiation detection
- Cobalt source, electronic accelerator irradiation place radiation detection
- Radioactive radiation laboratory detection
Main features
- Large area digital LCD display backlight, English menu.
- The shell is designed with double-color plastic wrap.
- High sensitivity, can measuring environmental background.
- Dose rate and cumulative dose can be measured and displayed at the same time.
- Automatic switching range.
- Automatic save dose value and can be stored for a long time when power is off.
- Programming of alarm threshold level relative to radiation dose rate and radiation dose.
- Programming of the four alarm models:audio,shake,audio and shake,mute.
- Built-in large capacity rechargeable lithium battery,Display and alarm of electric quantity.
- Automatic fault detect.
- Can continuously save 98,000 real-time records and 32,000 alarm records, the value can be exported through USB (optional special software).
- Optional Bluetooth communication and mobile APP.
