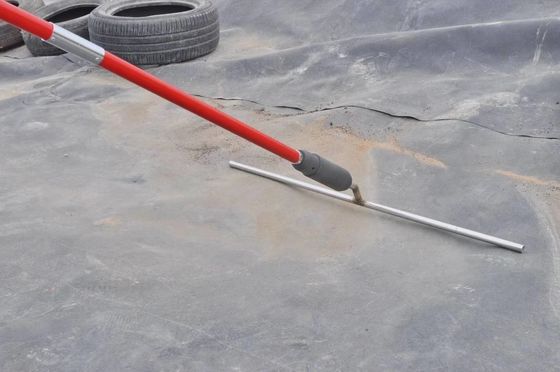

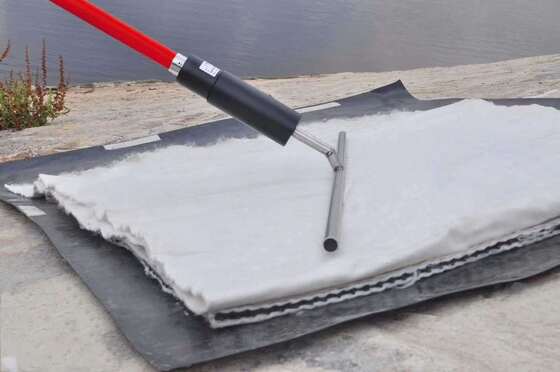

Geomembrane Leak Detector HD-107 with 50KV Output Voltage, 0.1~35mm Detection Thickness, and 4400AMH Battery Capacity

Geomembrane Leak Detector HD-107 with 50KV Output Voltage, 0.1~35mm Detection Thickness, and 4400AMH Battery Capacity
Geomembrane Leak Detector HD-107 with 50KV Output Voltage, 0.1~35mm Detection Thickness, and 4400AMH Battery Capacity Geomembrane Leak Detector HD-107 with 50KV Output Voltage, 0.1~35mm Detection Thickness, and 4400AMH Battery Capacity

Large Image :  Geomembrane Leak Detector HD-107 with 50KV Output Voltage, 0.1~35mm Detection Thickness, and 4400AMH Battery Capacity

Product Details:
Contact Now

Geomembrane Leak Detector HD-107 with 50KV Output Voltage, 0.1~35mm Detection Thickness, and 4400AMH Battery Capacity

Description
Output Voltage: 0.6kV ~ 50KV

Geomembrane Leak Detector HD-107
Product Overview

The Geomembrane Leak Detector HD-107 represents the latest generation of geomembrane leak detection equipment, incorporating extensive user feedback and field application experience. This optimized system features enhanced core components that deliver output voltages up to 50 kV, with adjustable sensitivity to match geomembrane thickness, conductivity, and soil conditions for precise leak detection.

The upgraded system offers improved linear output, enhanced leak detection efficiency, and extended battery capacity (4400mAh) for prolonged field operation. With excellent portability and user-friendly operation, the HD-107 provides reliable performance in demanding environmental conditions.

Technical Specifications
Parameter Specification
Output High Voltage 0.6kV ~ 50kV (stepless continuous adjustable)
Detection Thickness 0.1~35mm (affected by soil environment)
Voltage Display Direct indication of output high voltage value
Sensitivity Variable sensitivity control
Battery 12V/2200mAh
Power Consumption ≤5W
Main Unit Dimensions 220 × 130 × 88 mm
Key Features
  • Backlit display for low-light conditions
  • Instantaneous power on with automatic shutdown
  • 3 LCD display for output voltage monitoring
  • Full touch panel operation
  • Peak-ringing alarm system for leak detection
  • Enhanced portability and field operability
  • Optimized linear output for efficient detection
Applications

Primary Applications: Floor waterproofing, pond waterproofing, pit leakage detection, river dam waterproofing, and construction waterproofing detection.

Compatible Materials
  • HDPE geomembranes
  • LDPE geomembranes
  • PVC geomembranes
  • Polypropylene geomembranes
  • Asphalt geomembranes
  • Conductive supported geomembranes
  • Other electrical insulation materials
Suitable Substrates
  • Compacted clay with suitable electrical conductivity
  • Concrete with appropriate electrical conductivity
  • GCL (Geosynthetic Clay Liners)
  • Conductive aluminum foil geosynthetics
