HC-300E Metallographic Specimen Cutting Machine Water Cooling Lab Sample Cutter

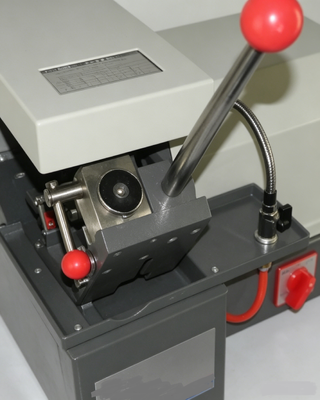

Large Image : HC-300E Metallographic Specimen Cutting Machine Water Cooling Lab Sample Cutter

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HC-300E

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	10-15 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HC-300E Metallographic Specimen Cutting Machine Water Cooling Lab Sample Cutter

Description

Grinding Wheel:

300×1.5×32mm

Power Source:

Y90L-2 2.6kW 380V 50Hz

Max Cutting Section:

50×50mm

Speed:

2800r/min

Highlight:

metallographic specimen cutting machine water cooling

lab sample cutter with water cooling

HC-300E metallographic cutter for specimens

HC-300E Metallographic Specimen Cutting Machine Water Cooling Lab Sample Cutter

HC-300E Cutting Machine is the first working procedure of making metallographic specimen. This machine uses a high-speed rotating thin enhance grinding wheel to intercept the sample. This machine is equipped with cooling system, prevent from burning sample groups in cutting. It is widely used in different metallographic laboratory, cutting all kinds of metallographic specimen.

Quick clamping mechanism, easy to clamp sample.

Accessories:

Item	Quantity	Item	Quantity
Solid wrench	2	Water inlet	1
Grinding wheel	2	Drain-pipe	1
Instruction	1	Certificate	1

Main Technical Specifications:

Max cutting section:50×50mm

Grinding wheel:300×1.5×32mm

Speed:2800r/min

Power source:Y90L-2 2.6kW 380V 50Hz

Weight:62KG

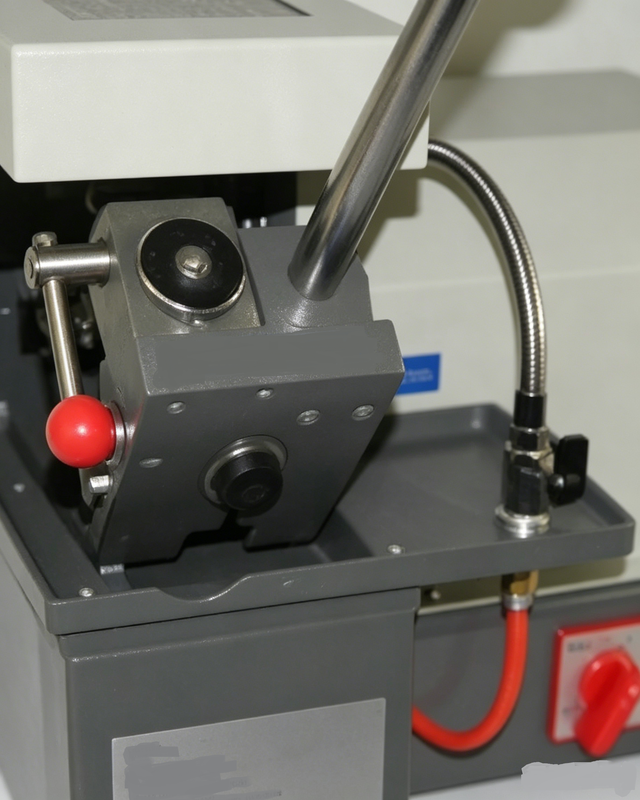

HC-300E Metallographic Specimen Cutting Machine Water Cooling Lab Sample Cutter 0
