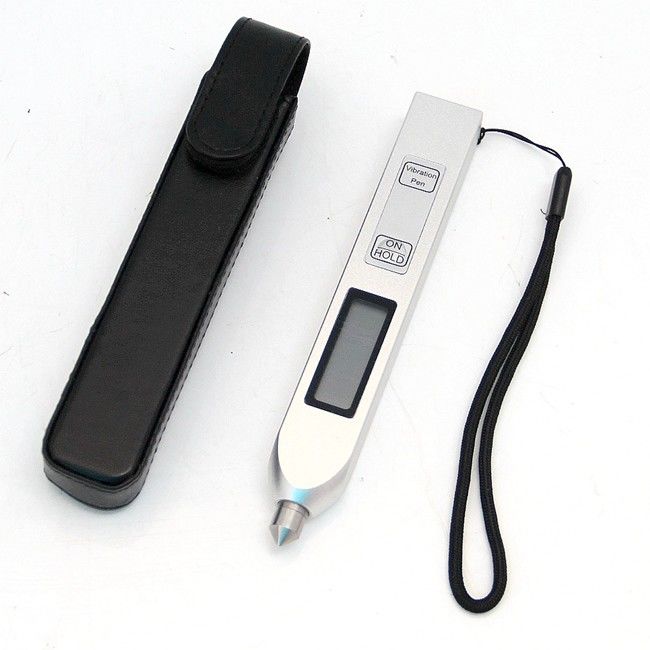

HG6410 Vibration Meter for velocity testing

HG6410 Vibration Meter for velocity testing
HG6410 Vibration Meter for velocity testing HG6410 Vibration Meter for velocity testing

Large Image :  HG6410 Vibration Meter for velocity testing

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HG6410
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Contact Now

HG6410 Vibration Meter for velocity testing

Description
Power Supply: Two Button Batteries(LR44 Or SR44) Battery Capacity: Approx. 5 Hours Working Continuously
Operating Temperature: 0℃ ~ 40℃ Humidity: <85%
Highlight:

HG6410 vibration meter for velocity

,

vibration meter for non-destructive testing

,

velocity testing vibration meter with warranty

Model HG6410/HG6430 Vibration Meter

Features:

  • Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so on.
  • Compact size, small weight, easy handling
  • Prompt testing of vibration on the workshop machines
  • For quick checking of unbalance misalignment, bearings and gears
  • Guard against mechanical malfunction
  • Holding tested value for 40 seconds
  • Automatic switch off after 40 seconds
  • HG6410 is used specially for velocity testing
  • HG6430 is used for acceleration, velocity and displacement testing

Technical Specifications:

Model HG6410 HG6430
Parameter RMS of vibration velocity (mm/s) Acceleration, Velocity, Displacement
Testing range Velocity: 0.1mm/s~ 199.9mm/s

Acceleration:0.1m/s2-199.9m/s2(peak)

Velocity: 0.1mm/s-199.9 mm/s(RMS)

Displacement: 0.001mm-1.999 mm (peak-peak)
Frequency range Velocity:10Hz ~ 1kHz

Acceleration: 10Hz ~ 1kHz(LO)

1kHz ~ 15kHz(HI)

Velocity: 10Hz ~ 1kHz

Displacement: 10Hz ~ 500Hz
Accuracy ±5% ± 2digits
Display 3 1/2 digits LCD
Power supply two button batteries(LR44 or SR44)
Battery capacity Approx. 5 hours working continuously
Operating temperature 0℃ ~ 40℃
Humidity <85%
Dimension 150mm*22mm*16mm

Configuration:

NO. Item Quantity

Standard Configuration

 1 Main uni. 1
2 Screwdriver 1
3 Batteries SR44LR44 1.5V 2

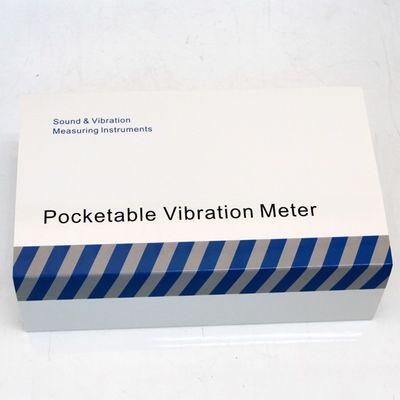

4 Box 1
5 Document 1(set)
