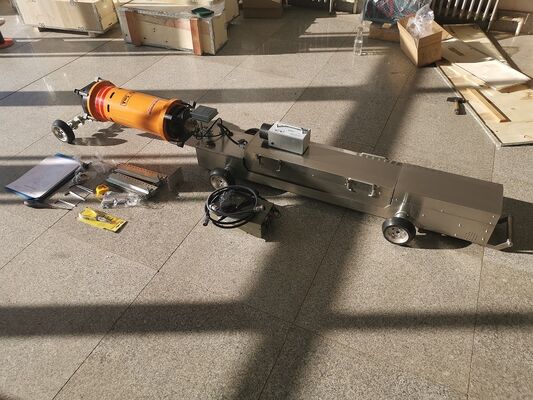

HUATEC X-Ray Pipeline Crawler Easy to Operate Detect the Welding Line of Long Pipeline

HUATEC X-Ray Pipeline Crawler Easy to Operate Detect the Welding Line of Long Pipeline

The X-ray pipeline crawlers include the special part that can detect the welding line of long pipeline. The X-ray pipeline crawlers have the advantages of high radiographic quality, high imaging sensitivity, low failure rate and high work efficiency. The X-ray pipeline crawlers have differential driving and vibration absorbers. The chassis of the X-ray pipeline crawlers can be moved in the pipeline steadily without off center running and overturning. The X-ray pipeline crawlers can be moved in the pipeline with great efficiency because it is controlled by PLC with protecting it from blocking and under voltage. The X-ray pipeline crawler is easy to be separated into several parts and then to be put together, so it is easy to carry. You can change the exposure parameter and make the X-ray pipeline crawler move, stop and have an exposure with the exterior controlling source. The X-ray pipeline crawlers are easy to operate.

Main Performances

Crawler can operate exposure when go forward, and no exposure during reverse

During run in pipeline, can automatically regulate its speed according to pipe slope (ascending or descending)

During running and exposure processes, fault detection functions are available (for water, obstruction, power supply fault, over-current, over-voltage, over-heating of components, under-current, etc.). If any fault is detected, crawler will immediately reverse to realize full-time protection. And it can be controlled during reverse when in faulty state

Remote time adjustment: to adjust exposure time outside pipeline (operation instruction specified in equipment menu)

PLC and a touch screen are installed inside crawler to display real-time running state, and with self-check function to inform operator of fault and solution that can secure smoothly detection progress

Constant power output ensure uniform quality of film

Sensors are fixed to detect water, obstruction, power supply fault (over-current, over-voltage), under-current, under-voltage and over-temperature. As soon as any of above faults occurs, PLC automatically instruct crawler to reverse for protection.

Exposure voltage is continuously adjustable

Specification of X Ray Pipeline Crawler

The crawler include below parts as standard accessories:

Main vehicle

Lead acid pile: 1

X-ray machine:

Instruction manual

Calibration certificate
