HCDX-220 220VAC Magnetic Yoke Flaw Detector with AC Magnetic Field and Lightweight Yoke for Surface Defect Detection

HCDX-220 220VAC Magnetic Yoke Flaw Detector with AC Magnetic Field and Lightweight Yoke for Surface Defect Detection
HCDX-220 220VAC Magnetic Yoke Flaw Detector with AC Magnetic Field and Lightweight Yoke for Surface Defect Detection HCDX-220 220VAC Magnetic Yoke Flaw Detector with AC Magnetic Field and Lightweight Yoke for Surface Defect Detection HCDX-220 220VAC Magnetic Yoke Flaw Detector with AC Magnetic Field and Lightweight Yoke for Surface Defect Detection HCDX-220 220VAC Magnetic Yoke Flaw Detector with AC Magnetic Field and Lightweight Yoke for Surface Defect Detection

Large Image :  HCDX-220 220VAC Magnetic Yoke Flaw Detector with AC Magnetic Field and Lightweight Yoke for Surface Defect Detection

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE
Model Number: HCDX-220
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: in carton
Delivery Time: 5~7 working days after payment
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 500pcs per month
Contact Now

HCDX-220 220VAC Magnetic Yoke Flaw Detector with AC Magnetic Field and Lightweight Yoke for Surface Defect Detection

Description
Power: 220VAC Frequency: 50-60Hz
Current: AC2A Magnetic Field: AC
Lift: > 7.5KG Operating Temperature: -10-50 °C

HCDX-220 220V Magnetic Yoke Flaw Detector No Power Controller
The Contour Probe is a rugged high performance instrument for Magnetic Particle inspection to accepted nondestructive testing standards. Certain operating procedures and safety precautions should be observed.
Key Characteristics
  • New concept of the magnetic yoke flaw detector is applied
  • Listed by aircraft maintenance manual for specific products
  • Uses advanced techniques for the formation of induced magnetic field
  • Controller and solid state electronic devices integrated into high-performance portable instrument
  • Fixed AC magnetic field for surface and near surface defect detection
  • Concentration of magnetic field applied to detection of high-energy areas
  • Quickly and accurately identifies material defects
  • Lightweight, reliable yoke compatible with dry powder and wet fluorescent magnetic particle
Technical Specifications
Parameter Specification
Power 220VAC
Frequency 50-60Hz
Current AC2A
Magnetic Field AC
Pole Spacing 20-200mm
Lift > 7.5KG
Operating Temperature -10-50°C
Dimensions 190 × 248 × 56mm
Cable Size 5M long 3-core cable
Work Cycle 2 minutes on - 2 minutes off
Weight 3.0KG
AC Magnetization
An AC field induced into a part is a skin or surface field and does not penetrate the cross section of the material. A bi-product of AC is in the form of eddy currents which tend to guide or direct the magnetic field in a basically narrow pattern between the poles. Another bi-product is a vibratory action which adds mobility to the inspection particles to form a highly defined powder build-up at the defect. For these reasons, an AC field is the most desirable for the detection of surface or surface breaking defects.
Maintenance Guidelines
This series contour probes are designed to provide a strong magnetic field for the detection of cracks and flaws in ferrous metals. The instrument should be tested periodically to assure adequate field strength, per applicable inspection agency requirements.
The instrument should be wiped clean with a general purpose cleaner after each use.
The contour probes are sold without electrical power plugs. Only approved plugs should be used and installed by certified personnel.

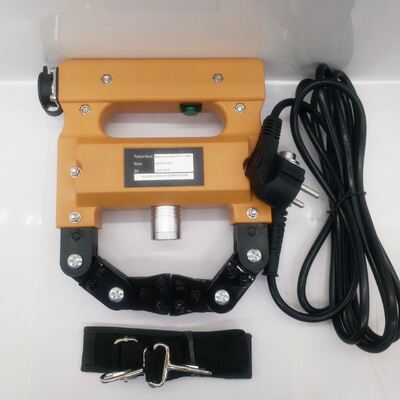

HCDX-220 Magnetic Yoke Flaw Detector front view and components
HCDX-220 Magnetic Yoke Flaw Detector in operation showing magnetic field application
