HUATEC Handheld charging style LED-UV light DG-9WA

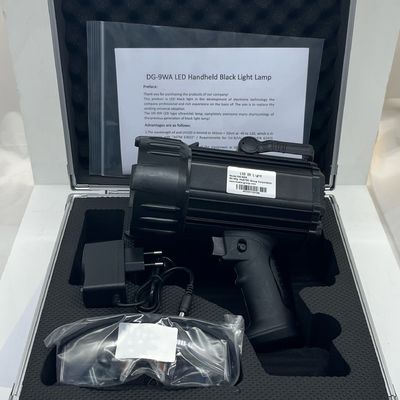

Large Image : HUATEC Handheld charging style LED-UV light DG-9WA

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	DG-9WA

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

Contact Now

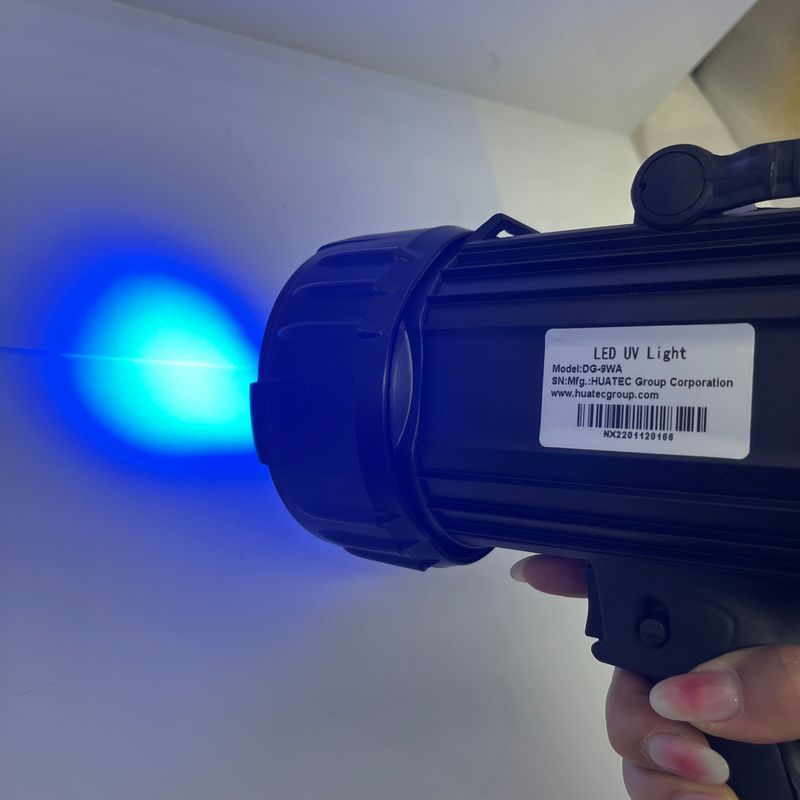

HUATEC Handheld charging style LED-UV light DG-9WA

Description

Style:

Handheld

Quantity Of Lamp Head:

UV Head:3pcs, White Light Head:1pc

UV(Light)-FLUX Indoor Temperature 25℃:

UV-MAX8000uW/cm2, Light-MAX1500LUX

Grading Feature:

Centre Grading

Highlight:

HUATEC handheld LED-UV light

charging style UV light DG-9WA

LED-UV light for non-destructive testing

HUATEC Handheld charging style LED-UV light

Model No.: DG-9WA

Features

Irradiance > 8000uw/cm²
Internal batteries (5-6hrs endurance)
Pre-alert and protection of low power
Light source life: 30000H
9VA power saving of power consumption
High quality UVLED light source
0 UV-B contained
Weight of 1kg only (including batteries)
Built-in battery, no external wiring
Three minute delay (power saving) / constant lighting mode (switchable)
Quartz and optical glass module (not PMMA material), excellent weather resistance
Continuous operation and external surface temperature rises less than 5 Celsius
No need to preheat, instant to reach 100% power
With UV and white light dual function, one-hand switch

Parameters

Item	Parameter
Style	handheld
Quantity of lamp head	UV head:3pcs, white light head:1pc
UV(Light)-FLUX Indoor temperature 25℃	UV-MAX8000uW/cm2, Light-MAX1500LUX
Grading feature	Centre grading
Irradiation area at depth of 380mm:(≥1000uw/cm²)	Φ170mm
Wavelength accuracy	±3nm
Power supply	AC100-240V 50/60Hz
Power	UV LED-9VA Light-3VA
Wave length	365nm±3nm(UVA) (Indoor temperature 25℃)
Outline dimension	203mm(W)110MM(D)220mm(H)
Weight	1kgs
Battery capacity	5800mA/H 12.6V
Charging time	4-5H
Battery cumulative time	UV LED 5-6H or Light 16H
