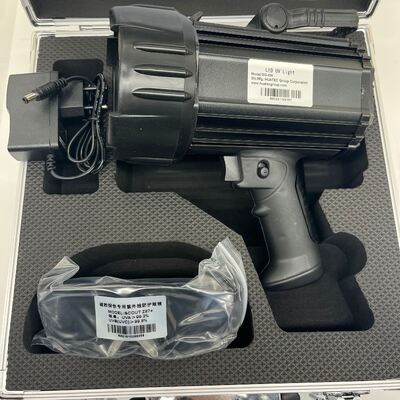

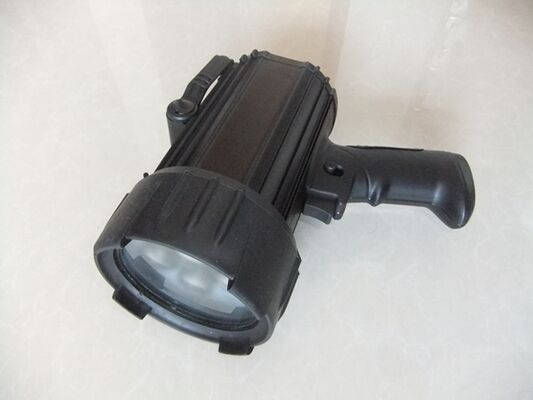

HUATEC Handheld LED UV Light with 5800mA/H Battery 30000H Light Source Life and UV White Light Dual Function

HUATEC Handheld LED UV Light with 5800mA/H Battery 30000H Light Source Life and UV White Light Dual Function
HUATEC Handheld LED UV Light with 5800mA/H Battery 30000H Light Source Life and UV White Light Dual Function HUATEC Handheld LED UV Light with 5800mA/H Battery 30000H Light Source Life and UV White Light Dual Function

Large Image :  HUATEC Handheld LED UV Light with 5800mA/H Battery 30000H Light Source Life and UV White Light Dual Function

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: DG-4W
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS

HUATEC Handheld LED UV Light with 5800mA/H Battery 30000H Light Source Life and UV White Light Dual Function

Description
Style: Handheld Battery Capacity: 5800mA/H 12.6V
Battery Cumulative Time: UV LED 4-5H Or Light 16H

HUATEC Handheld LED UV light UV lamp Ultraviolet lamp Model No.: DG-4W
Product Overview

HUATEC Handheld LED UV light UV lamp Ultraviolet lamp
Model No.: DG-4W

Key Characteristics
  • Internal batteries
  • Pre-alert and protection of low power
  • Light source life: 30000 hours
  • Meets standards: ASTM E3022-2015 or JB/T 8290-2011
Product Features
  • 9VA power saving consumption
  • 30,000 hours light source life expectancy
  • 0 UV-B contained
  • Battery endurance: 5-6 hours
  • Pre-alert and protection of low power
  • Weight: 1kg only including batteries
  • Built-in battery, no external wiring, easy battery replacement
  • Three minute delay (power saving) / constant lighting mode switching
  • Quartz and optical glass module, not PMMA material, excellent weather resistance
  • Continuous operation with external surface temperature rise less than 5°C
  • No preheat needed, instant 100% power
  • UV and white light dual function, one-hand switch
  • White light less than 20LUX
Technical Specifications
Item DG-4W DG-8W DG-4WX DG-8WX
Standard JB/T 8290-2011 ASTM E3022-2015
Intensity ≥ 4000uW/cm² 8000uW/cm² 4000uW/cm² 8000uW/cm²
White light ≥ 800LUX 1200LUX no
White levels ≤ 20LUX 5LUX
Area covered 280mm 220mm 280mm 220mm
Power supply AC100-240V 50/60Hz
Power UV LED-9VA, LED Light-3VA
Wave length Indoor temperature 25℃ 365nm±3nm (UVA)
Outline dimension 203mm(W) * 110mm(D) * 220mm(H)
Weight 1kg
Battery capacity 5800mA/H 12.6V
Battery cumulative time UV LED 4-5H or Light 16H
Safety Notices
Improper operation may cause minor to severe injuries, and in extreme cases, serious injury or death. May also cause property damage.
  • Power supply beyond technical parameter scope
  • When earth socket is not used
  • Maintenance by non-professional personnel
  • When shell and cable are damaged
  • Equipment installed beyond safe use conditions
  • When lights are on, wear professional UV protective glasses throughout use
  • After opening, do not look directly at UV LED light source
  • Must wear gloves and full opaque sleeves
Safe Use Conditions

Do not use in the following environments:

  • Direct sunlight locations
  • Rapid temperature change areas that produce condensation
  • Temperatures below -10°C or above 40°C
  • Humidity greater than 85% or areas with rain/liquid splash
  • Locations with vibration and shock exposure
Maintenance
  • Keep special glass clean
  • Keep appearance clean
  • Regularly clean fan filter (cumulative time not to exceed 60 days)
  • Use only neutral detergent for cleaning

Attention: Do not cover lamp shell and air duct with foreign objects! No display, shelving or installation of other items! Install product correctly according to technical parameters.

Warranty Clause
  • Unless otherwise agreed, warranty period is one year from shipment date
  • Warranty void if serial number altered or seal damaged
  • Damage from natural disasters or force majeure not covered
  • Damage from improper installation or use not covered by warranty
