DG-8K Handheld 365nm UV LED Inspection Lamp Dual UV White Light 10000uW/cm² Magnetic Particle NDT Black Light

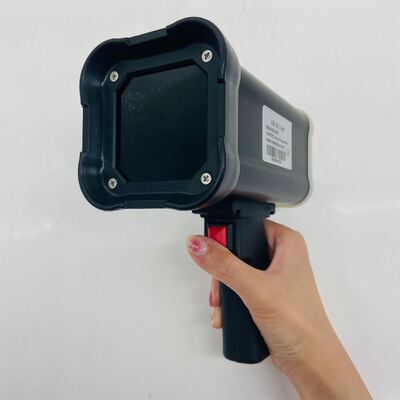

Large Image : DG-8K Handheld 365nm UV LED Inspection Lamp Dual UV White Light 10000uW/cm² Magnetic Particle NDT Black Light

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	DG-8K

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

DG-8K Handheld 365nm UV LED Inspection Lamp Dual UV White Light 10000uW/cm² Magnetic Particle NDT Black Light

Description

UV(Light)-FLUX Indoor Temperature 25℃:	10000uW/cm²	Irradiation Area At Depth Of 380mm: (≥1000uw/cm²):	Approximately 200mm In Diameter
Flux Error:	0-40℃ ±10%	Power Supply:	AC100- 240V，50/60Hz
Wavelength:	Room Temperature 25℃, 365nm±3nm (UVA)	Power:	UV LED-9VA Light-3VA
Light Distribution Characteristics:	Central Light Distribution
Highlight:	365nm UV LED inspection lamp , handheld UV black light , magnetic particle NDT lamp

DG-8K Handheld 365nm UV LED Inspection Lamp Dual UV White Light 10000uW/cm² Magnetic Particle NDT Black Light

Features

*Energy saving is only 9VA of power consumption.

*The average lifespan of a light source of 30000H.

*Original imported light source UVLED.

*The UV-B content is 0.

*3-4 hours of battery life.

*Quick battery replacement

*Weight containing less than 500g of batteries.

*There is no external wiring.

*Quartz and optical glass module, non PMMA material, excellent weather resistance.

*Continuous working with an external surface temperature rise of less than 5K (5 ℃).

*No preheating required, instantly reaching 100% power.

*Equipped with dual functions of UV and white light, with one hand switching. 3pcs UV lamps, 1pc white light lamp

Project	Parameter / method
Form	Handheld
UV(Light)-FLUX 25 ℃ Room temperature ,Calibration at 380mm	UV -FLUX 10000uW/cm² Light-MAX1500LUX
Coverage area calibration at 380mm	Approximately 200mm in diameter
FLUX error	0-40℃ ±10％
Light distribution characteristics	Center light distribution
power supply	AC100-240V 50/60Hz
power	UV LED-9VA Light-3VA
wavelength	Room temperature 25℃ 365nm±3nm(UVA)
Dimensions	137mm(W)73mm(D)175mm(H)
weight	498g
battery capacity	2200mA/H 12.6V
Charging time	3-4H
Battery life (cumulative time)	UV LED 3-4H or Light 7H

DG-8K Handheld 365nm UV LED Inspection Lamp Dual UV White Light 10000uW/cm² Magnetic Particle NDT Black Light 0
