HG-5026 Battery Powered Vibration Calibrator with 1 to 1280 Hz Frequency Range and High Accuracy

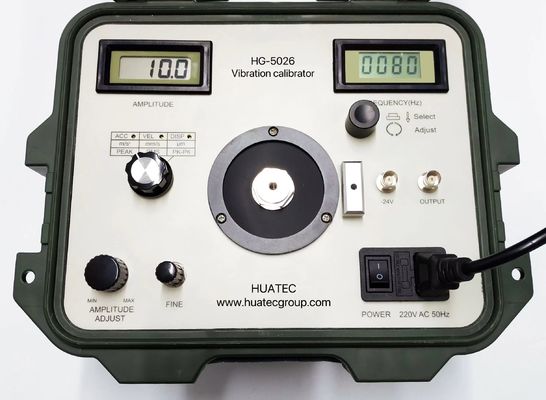

Large Image : HG-5026 Battery Powered Vibration Calibrator with 1 to 1280 Hz Frequency Range and High Accuracy

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	HG-5026

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

Contact Now

HG-5026 Battery Powered Vibration Calibrator with 1 to 1280 Hz Frequency Range and High Accuracy

Description

Temperature: Operation:	0oC To 50 OC	Storage:	-20 OC To 70 OC
Power:	220Vac (optional 110Vac)	Probe:	5mm,8mm And 11mm Probes
Probe Size:	5mm,8mm And 11mm Probes

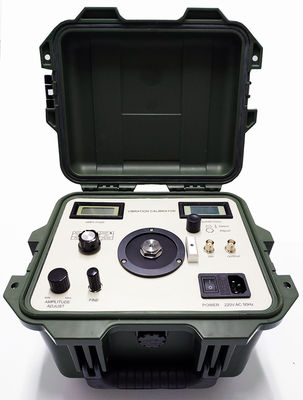

HG-5026 Battery Powered Vibration Calibrator

The HG-5026 battery powered vibration calibrator is designed for calibrating vibration accelerometers, velocity and proximity transducers, and vibration measuring instruments. It generates standard sine signal vibration at frequencies from 1 to 1280 Hz, with amplitude of acceleration, velocity, and displacement defined through potentiometers and displayed on digital screens.

This versatile instrument can generate both horizontal and vertical vibration, combining sine signal generator, power amplifier, standard transducer, vibration meter, and shaker in one compact unit. Featuring small volume, high accuracy, and easy operation, it is suitable for both laboratory and field applications.

Maximum Vibration Amplitude & Transducer Weight

Performance Specifications by Transducer Weight
Frequency	< 100g			< 250g			< 500g
Frequency	a(m/S²)	v(mm/S)	d(μm)	a(m/S²)	v(mm/S)	d(μm)	a(m/S²)	v(mm/S)	d(μm)
10Hz	2.5	28	1300	3.5	40	1800	4	45	2000
20Hz	15	85	1900	10	60	1300	5	28	640
40Hz	60	170	2000	35	100	1100	12	35	380
80Hz	100	141	800	40	60	320	14	20	110
160Hz	75	53	150	35	25	70	12	8.5	24
320Hz	50	18	25	30	10	15	10	3.5	5
640Hz	30	5	3	20	3.5	2	6	1	*
1280Hz	23	2	*	10	0.9	*	5	0.4	*

Note: When the frequency is high, due to the very small value of the vibration displacement, the calibrator does not display the amplitude of the vibration signal at these points.

Battery System

Automatic charging when connected to AC power supply
Built-in battery overcharge protection
Approximately 8 hours charging time from empty to full
Over 8 hours of operation when fully charged (varies with vibration intensity)
Low power life protection, over-temperature protection, and short-circuit safety protection

Technical Specifications

Frequency Range: 1 to 1280 Hz ≤±0.01%

Amplitude Accuracy:

Acceleration (@10m/s² pk): 40Hz to 320Hz ±0.3dB ±1digit, 20Hz to 640Hz ±0.5dB ±1digit
Velocity (@20mm/sec rms): 40Hz to 320Hz ±0.5dB ±1digit
Displacement (@50μm pk-pk): 40Hz to 320Hz ±0.5dB ±1digit

Proximity Probe Linearity Calibration Kits:

Probes: 5mm, 8mm and 11mm probes
Range: 0~4.0mm

Weight of Velocity Probe: <650g

Display: 3½ digit display for vibration and frequency

Dimensions: 300 × 250 × 210 mm

Net Weight: 6 kg

Temperature Range:

Operation: 0°C to 50°C
Storage: -20°C to 70°C

Power Supply: 220Vac (optional 110Vac)
