HUATEC DP802i Personal dose alarm meter for X, γ and hard-β rays measurement with 0.01 µSv/h to 30mSv/h range and quick response time ≤5 seconds

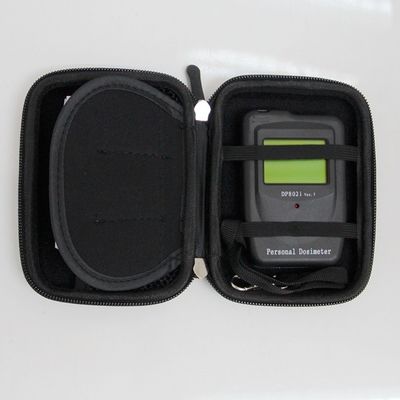

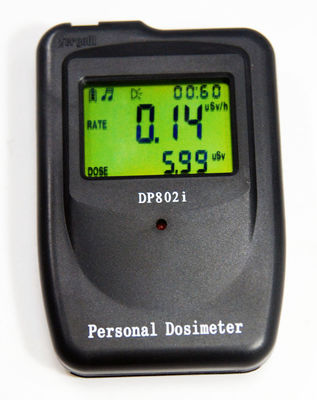

Large Image : HUATEC DP802i Personal dose alarm meter for X, γ and hard-β rays measurement with 0.01 µSv/h to 30mSv/h range and quick response time ≤5 seconds

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	DP802i

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

Contact Now

HUATEC DP802i Personal dose alarm meter for X, γ and hard-β rays measurement with 0.01 µSv/h to 30mSv/h range and quick response time ≤5 seconds

Description

Display Unit:	Dose Rate (µSv/h Or MSv/h) And Cumulate Dose (µSv Or MSV)

HUATEC DP802i Personal Dose Alarm Meter

Product Overview

The DP802i Personal Dose Alarm Meter is a compact, high-performance radiation monitoring device designed for personal safety in various radiation environments.

Technical Specifications

Measurement Type	X, γ and hard-β rays
Measuring Range	Dose Rate: 0.01 µSv/h - 30 mSv/h Cumulative Dose: 0.00 µSv - 999.9 mSv
Energy Range	40 keV - 1.5 MeV
Energy Response Error	≤ ±30% (according to 137Cs)
Relative Basic Error	≤ ±10%
Measuring Time	Automatic adjustment according to radiation, quick response
Alarm Values	0.5, 1.0, 2.5, 10, 30, 50, 100, 500 µSv/h
Alarm Response Time	≤ 5 seconds
Display	LCD
Display Units	Dose Rate (µSv/h or mSv/h) and Cumulative Dose (µSv or mSv)
Power Supply	1 AAA battery, 15 days working time
Dimensions	90 × 60 × 17 mm
Weight	80g

Purpose of Use

Measurement of personal gamma and X-ray radiation equivalent dose rate (EDR)
Measurement of personal gamma and X-ray radiation equivalent dose (ED)
Alarm for exceeded programmed threshold levels

Applications

Nuclear facilities environmental radiation detection
Soil surface radiation pollution detection
Agricultural radiation pollution detection
Ore and building materials radioactive detection
Personal dose monitoring and alarm
Industrial X, gamma NDT radiation detection
Radiation medical treatment place radiation detection
Cobalt source, electronic accelerator irradiation place radiation detection
Radioactive radiation laboratory detection
