FJ6101 Laboratory Radiation Meter with 0.01～500.00µSv/h Dose Rate High Sensitivity and Wide Measuring Range

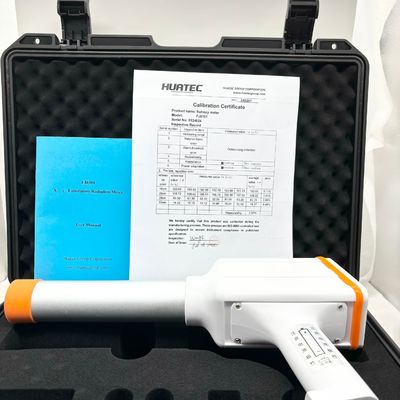

Large Image : FJ6101 Laboratory Radiation Meter with 0.01～500.00µSv/h Dose Rate High Sensitivity and Wide Measuring Range

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	FJ6101

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

Contact Now

FJ6101 Laboratory Radiation Meter with 0.01～500.00µSv/h Dose Rate High Sensitivity and Wide Measuring Range

Description

Dose Rate:	0.01～500.00µSv/h

FJ6101 х、γ Laboratory Radiation Meter

The FJ6101 х,γ radiation meter is specifically designed to measure х,γ radiation dose rates in various radioactive working areas. Compared to similar meters in China, this device offers a wider measuring range of dose rate. It has been widely adopted in hygiene departments, environmental protection, metallurgy, petroleum, chemical industry, radioactive laboratories, commodity inspection, and related fields.

Key Features

High sensitivity, wide measuring range, excellent energy response
High-speed low power consumption microprocessor
Digital and gauge double display
English interface display with LCD digital display
Capacity to save 20,000 data groups
Measures both dose rate and total doses
Two levels of dose rate threshold alarm function
Battery indicator
Lightweight and ergonomic design using ABS and aluminum alloy shell
Extended operation capability with standard 40 cm length, extendable to 100 cm
Waterproof seal protection case
Optional USB communication function
Optional Bluetooth printer, Bluetooth or WiFi data transmission
Optional dual battery model (built-in lithium battery)

Technical Specifications

Detector	φ30×25mm, NaI
Sensitivity	1µSv/h ≥ 350 CPS
Energy Threshold	35 keV
Measuring Range	Dose rate: 0.01～500.00 µSv/h Accumulative dose: 0.00 µSv～99999 µSv
Energy Range	40 keV～3 MeV
Energy Response	≤±30% (relative to 137Cs)
Relative Error	≤±10%
Measurement Time	1~250s programmable
Alarm Threshold	Programmable within range
Display Units	Dose rate: nSv/h, µSv/h, nGy/h, µGy/h Accumulative dose: µSv Counting rate: CPS
Power Source	Type C battery (Two batteries)
Power Consumption	≤100 mW (excluding backlighting power consumption)
Weight	1.0 kg (including battery)
Dimensions	40 cm × 20 cm × 7.5 cm
